Running diagram of poly V-belt - AR13.22-P-3902-02PR

Engine 111.951 with AC compressor

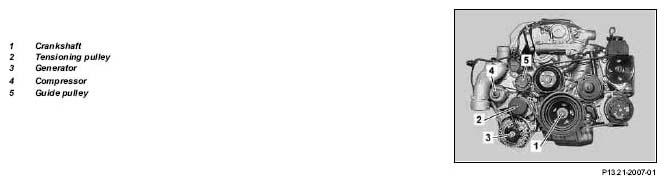

Fig 1: Running Diagram Of Poly V-Belt (Engine 111.951 With AC Compressor)

Engine 111.955 with AC compressor

(Running diagram of basic drive)

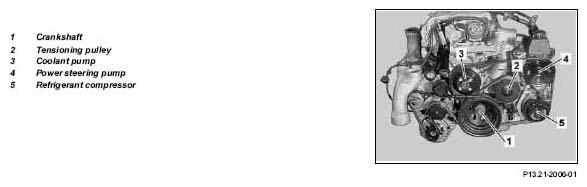

Fig 2: Running Diagram Of Poly V-Belt (Engine 111.955 With AC Compressor)

Engine 111.955 with AC compressor

(Running diagram of basic drive)

Fig 3: Running Diagram Of Poly V-Belt (Engine 111.955 With AC Compressor)
