Remove, install poly V-belt - AR13.22-P-1202PR

ENGINE 111.951 in MODEL 203.035 /235 /735

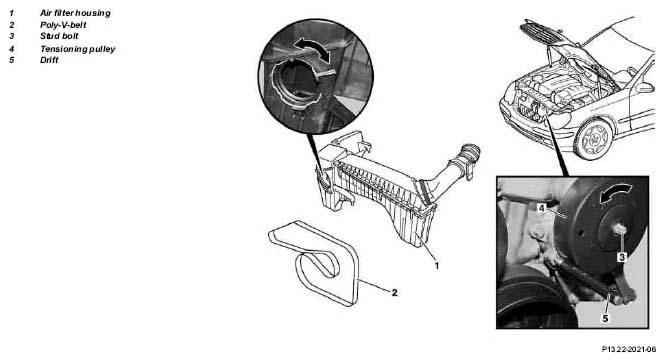

Fig 1: Identifying Poly V-Belt Remove/Install Components - Engine 111.951 In Model 203.035 /235 /735

	Remove
1	Remove air filter housing (1).		AR09.10-P-1150PR
2	Loosen poly-V-belt (2) and remove	Swivel stud bolt (3) at tensioning pulley (4) in anti-clockwise direction (arrow) for this step. Lock tensioning pulley with pin or drift (5).
	Check
3	Inspect belt pulley sections and tensioning device for damage and dirt, replace if necessary
4	Inspect poly V-belt (2), replace if necessary
	Check poly-V-belt in visible area for wear		AP13.22-P-1352Z
	Install
5	Fit on poly-V-belt (2), then clamp	Installation:  Do not use any belt wax or similar products Fit on poly V-belt as specified in running diagram ↓
		Layout diagram of poly-V-belt	AR13.22-P-3902-02PR
6	Install air filter housing (1)	Installation:  Lightly coat rubber retainer with antifriction agent.	AR09.10-P-1150PR
