Remove, install charge air duct downstream of charge air cooler - AR09.50-P-8680PK

ENGINE 111.955 in MODEL 203.045 /245 /745

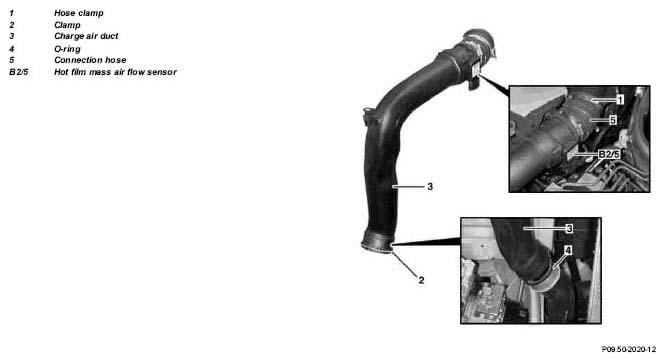

Fig 1: Identifying Charge Air Duct Downstream Of Charge Air Cooler Remove/Install Components

	Removing, installing
1	Remove air cleaner housing		AR09.10-P-1150PK
2	Slacken hose clamp (1)	Installation:  Inspect hose clamp, replace if necessary.
3	Separate plug connection of the hot film mass air flow sensor (B2/5)
4	Push back clip (2) until it locks in place
5	Remove charge air duct (3) together with hot film mass air flow sensor (B2/5)	Removal:  Seal opening of charge air cooler. Detach hot film mass air flow sensor (B2/5) if necessary. ↓
		Detaching hot film mass air flow sensor.	AR07.07-P-1453PK
		Installation:  Replace O-ring (4). Inspect connection hose (5), replace if necessary.
6	Install in the reverse order
