Remove, install hot film mass air flow sensor - AR07.07-P-1453PK

ENGINE 111.955 in MODEL 203.045 /245 /745

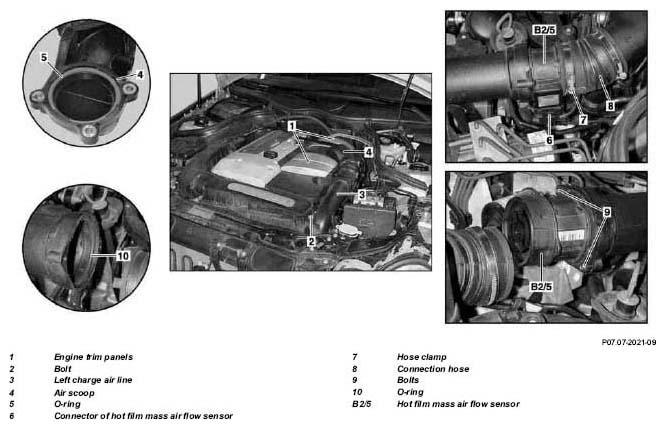

Fig 1: Identifying Engine Trim Panel, Left Charge Air Line, O-Ring, Hose Clamp And Bolts - Engine 111.955 In Model 203.045 /245 /745

	Removing, installing
1	Remove engine trim panels (1)
2	Unscrew bolts (2) of charge air line (3)
3	Detach air scoop (4)	Do not detach vacuum lines of air scoop (4).
		Installation:  Inspect O-ring (5) of air scoop (4), replace if necessary.
			*BA30.20-P-1001-01B
4	Unplug connector (6) of hot film mass air flow sensor (B2/5)
5	Loosen hose clamp (7)
6	Pull hot film mass air flow sensor (B2/5) out of connection hose (8)
7	Unscrew bolts (9)
8	Remove hot film mass air flow sensor (B2/5)	Installation:  Inspect O-ring (10), replace if necessary.
9	Install in the reverse order

ELECTRONIC ACCELERATOR PEDAL ACTUATOR

Number	Designation		Engine 111.951/ 955/958/ 983
BA30.20-P-1001-01B	Bolt of electronic accelerator to inlet connection	NM	8
