Remove/install instrument panel bottom section on driver's side - AR68.10-P-1505P
MODEL 203

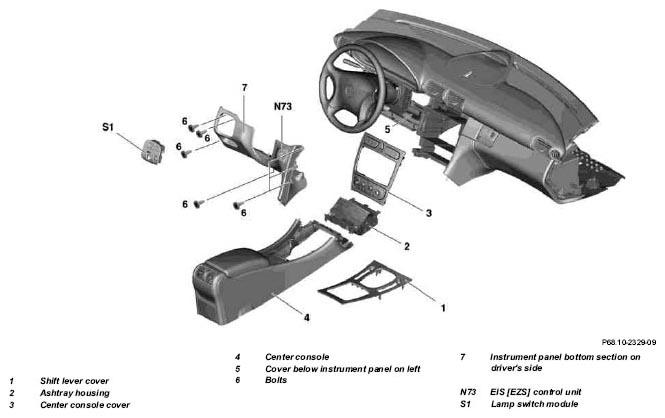

Shown on model 203.0
| Remove/Install | |||
|---|---|---|---|
| 1 | Remove center console (4) | AR68.20-P-2000P | |
| 2 | Remove center console cover (3) | AR68.20-P-2350P | |
| 3.1 | Remove radio | with Audio 30 RDS MB radio code 750, with MB Audio 10 RDS MB radio code 753, with Audio 10 CD MB radio with VK/RDS code 756 | AR82.60-P-7502P |
| As of 24.4.04 with Audio 20 MB radio code 523 | AR82.60-P-7502PA | ||
| 3.2 | Remove radio and APS navigation control panel | Audio 30 APS with Code 353 | AR82.61-P-7412P |
| As of 24.4.04 with Audio 50 APS MB radio Code 525 | AR82.61-P-7412PA | ||
| 3.3 | Remove operating and display unit with control unit | Up to 23.4.04 with COMAND operating and display system, code 352 | AR82.85-P-7472P |
| As of 24.4.04 with COMAND APS (with navigation) code 527, with HIGH Class Japan code 529, with COMAND APS USA (with navigation) code 530 | AR82.85-P-7472PA | ||
| 4 | Remove cover below instrument panel on left (5) | AR68.10-P-1500P | |
| 5 | Remove light switch module (S1) | AR54.25-P-3270P | |
| 6 | Unscrew bolts (6) | ||
| 7 | Unclip driver-side instrument panel bottom section (7) with mounting wedge | Figure | |
| 8 | Remove driver-side instrument panel bottom section (7) | ||
| 9 | Unscrew lock cover plate from EIS control unit (N73) | Fig 3 | |
| 10 | Remove EIS control unit (N73) from driver-side instrument panel bottom section (7) | ||
| 11 | Unhook release cable for foot-operated parking brake from operating lever | ||
| 12 | Remove driver-side instrument panel bottom section (7) | ||
| 13 | Install in the reverse order |
