Remove/install front fenders - AR88.10-P-1000P

MODEL 203

Shown on model 203.076 /276

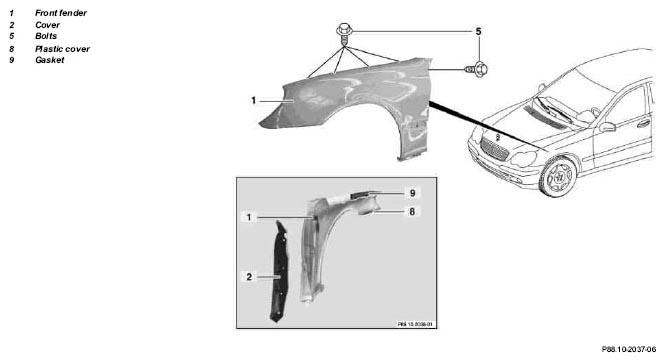

Fig 1: Identifying Front Fender Remove/Install Components (1 Of 3)

Fig 2: Identifying Front Fender Remove/Install Components (2 Of 3)

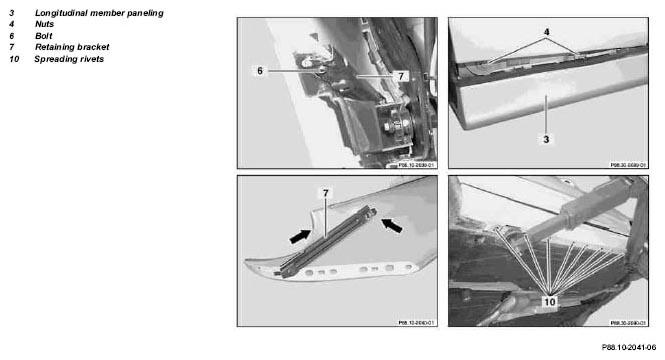

Fig 3: Identifying Front Fender Remove/Install Components (3 Of 3)

	Remove/Install
1	Open engine hood and move to upright position		AR88.40-P-1000P
2	Remove inner liner in front fender		AR88.10-P-1300P
3	Unscrew bolt (6)
4	Swivel retaining bracket (7) to center of vehicle, pull backwards and remove
5	Unscrew bolts for underbody paneling along longitudinal member paneling (3)
6	Remove the front six spreading rivets (10) on the longitudinal member paneling
7	Remove door sill molding on front door
8	Unclip longitudinal member paneling (3) in area of front fender until nuts (4) are accessible	Do not damage longitudinal member paneling.
		Long wedge	Fig 4
9	Unscrew nuts on front fender

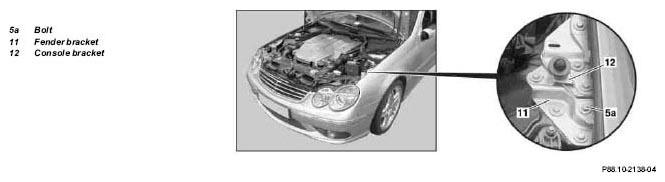

10	Unscrew bolts (5).	Model 203.076 /276. Unscrew bolt (5a) from fender bracket (11)
11	Remove front fender (1)
12	Unclip cover (2)
13	Remove spreading rivets
14	Remove plastic cover (8)	When replacing fender gasket (9) on new fender.	*BR00.45-Z-1003-02A
15	Install in the reverse order	Installation:  Ensure that driver's door and engine hood are positioned correctly. The cover between the wheelhouse and bumper as well as the firewalls must make contact with the front fender.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-02A	Universal adhesive	A 000 989 82 71

Fig 4: Identifying Long Wedge (115 589 03 59 00)
