Removing and installing front door liner - AR72.10-P-1000P

MODEL 203

Illustrated on model 203.0

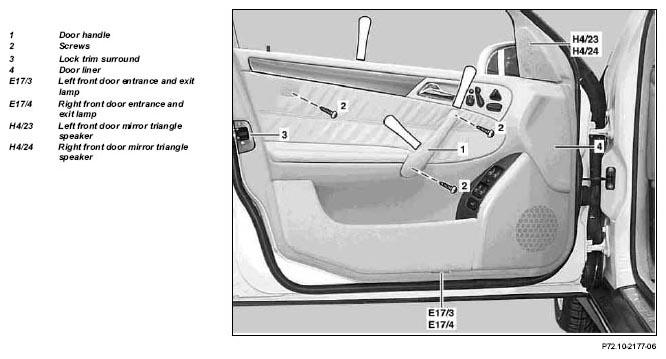

Fig 1: Identifying Front Door Liner Remove/Install Components - Illustrated On Model 203.0

Illustrated on model 203.7

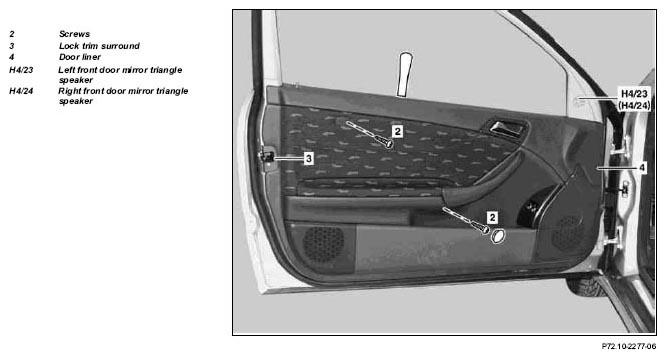

Fig 2: Identifying Front Door Liner Remove/Install Components - Illustrated On Model 203.7

Illustrated on model 203.0

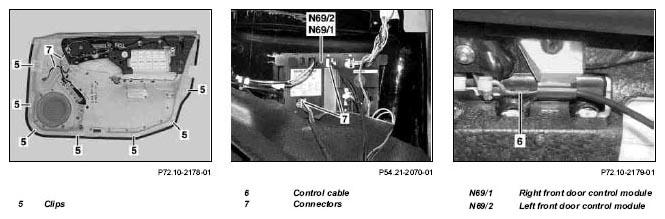

Fig 3: Identifying Left/Front Door Control Module, Clips, Control Cable And Connectors

	Removing, installing
1	Position assembly wedge at top of door handle (1) and press off	Model 203.0 / 203.2 Press not more than 10 mm out of the catch.
		Assembly wedge	Figure
2	Position assembly wedge at bottom of door handle (1) and press off	Model 203.0 / 203.2
		Assembly wedge	Figure
3	Take out door handle (1)	Model 203.0 / 203.2
4	Unclip SRS cover
5	Unscrew screws (2)
6	Unhook front entrance and exit lamp and disconnect connector	With code (611) 2 exit lamps in front doors Left front door entrance and exit lamp (E17/3), right front door entrance and exit lamp (E17/4).
7	Remove door mirror triangle speaker	With code (810) sound system Left front door mirror triangle speaker (H4/23), right front door mirror triangle speaker (H4/24).	AR82.62-P-7850P
8	Remove lock trim surround (3)	Torx bit set	Figure
9	Press door liner (4) off of inner door panel at bottom, front and rear in area of clips (5) with assembly wedge	Inspect clips for damage.
		Assembly wedge	Figure
10	Use assembly wedge to lift top of door liner (4) out of inner sealing rail	Assembly wedge	Figure
11	Unhook control cable (6) from inner door actuation
12	Detach connectors (7)	On left front door control module (N69/1), right front door control module (N69/2).
13	Lay door liner (4)down
14	Install in the reverse order

Fig 4: Identifying Assembly Wedge (110 589 03 59 00)

Fig 5: Identifying Torx Bit Set (000 589 01 10 00)
