Removing and installing front door speakers in mirror triangle - AR82.62-P-7850P
MODEL 203
Shown on model 203.0

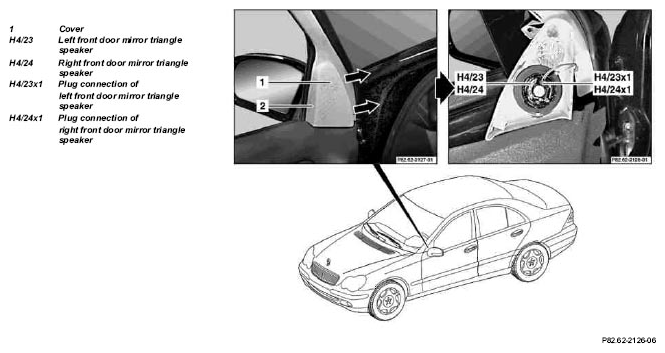

Fig 1: Identifying Front Door Speakers In Mirror Triangle Remove/Install Components - Shown On Model 203.0
| Removal, installation | |||
|---|---|---|---|
| 1 | Unclip cover (1) at mirror triangle | ||
| 2 | Separate plug connection of left front door mirror triangle speaker (H4/23x1); plug connection of right front door mirror triangle speaker (H4/24x1) | ||
| 3 | Unclip left front door mirror triangle speaker (H4/23); right front door mirror triangle speaker (H4/24) and take out of cover (1) | ||
| 4 | Install in the reverse order | ||
| 5 | Perform function check |
