Disassembling and assembling front door liner - AR72.10-P-1030P
MODEL 203

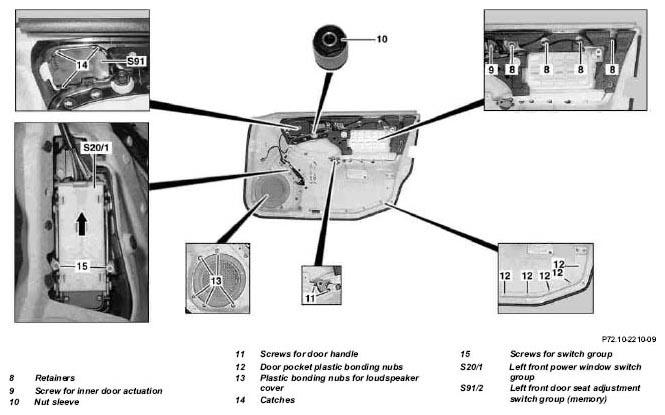

Illustrated on model 203.0

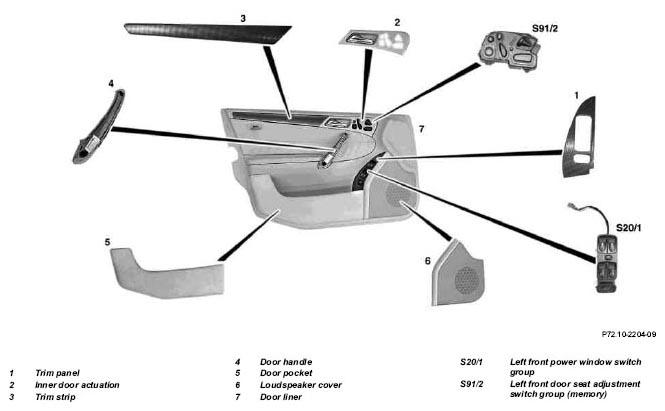

Illustrated on model 203.0
| Disassembling | |||
| 1 | Remove door liner from front door | AR72.10-P-1000P | |
| 2 | Unscrew screws (15) | Model 203.0 / 203.2 | |
| 3 | Use assembly wedge to press off trim panel (1) at bottom and take out | Figure | |
| 4 | Unclip left front power window switch group (S20/1) out of trim panel (1) (arrow) and remove | ||
| 5 | Push away catches (14) and take out left front door seat adjustment switch group (memory) (S91/2) | With code (241) memory switch for left electrically adjustable driver's seat With code (275a) memory package (driver's seat, steering column, mirror) With code (275b) memory package (driver's seat, mirror) |
|
| 6 | Remove retainers (8) and trim strip (3) | Model 203.0 / 203.2 | |
| 7 | Unscrew screw (9) and remove inner door actuation (2) | Model 203.0 / 203.2 | |
| Figure | |||
| 8 | Unscrew nut sleeve (10) | Model 203.0 / 203.2 | |
| 9 | Remove screws (11) and take off door handle (4) | Figure | |
| 10 | Remove plastic bonding nubs (12) and remove door pocket (5) | ||
| 11 | Remove plastic bonding nubs (13) and remove loudspeaker cover (6) | ||
| Assembling | |||
| 12 | Install loudspeaker cover (6) | ||
| 13 | Install door pocket (5) | ||
| 14 | Install door handle (4) | Figure | |
| 15 | Tighten nut sleeve (10) fully | Model 203.0 / 203.2 | |
| 16 | Install inner door actuation (2) | Figure | |
| 17 | Install trim strip (3) | Model 203.0 / 203.2 | |
| 18 | Install left front door seat adjustment switch group (memory) (S91/2) | With code (241) memory switch for left electrically adjustable driver's seat With code (275a) memory package (driver's seat, steering column, mirror) With code (275b) memory package (driver's seat, mirror) |
|
| 19 | Clip left front power window switch group (S20/1) into trim panel (1) (arrow) and install | ||
| 20 | Tighten screws (15) | Model 203.0 / 203.2 | |
| 21 | Install door liner in front door | AR72.10-P-1000P |
