Remove/install rear door - AR72.12-P-0600P

MODEL 203.0/ 2

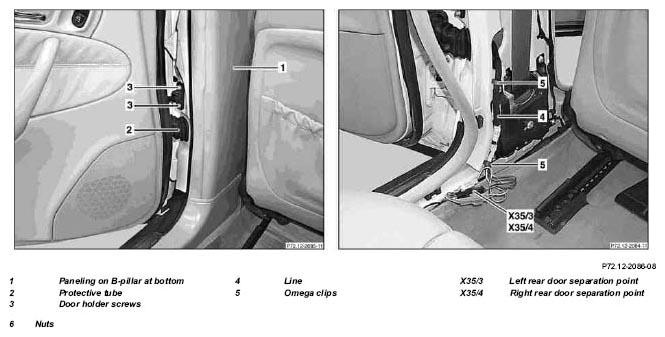

Fig 1: Identifying Rear Door Remove/Install Components (1 Of 2)

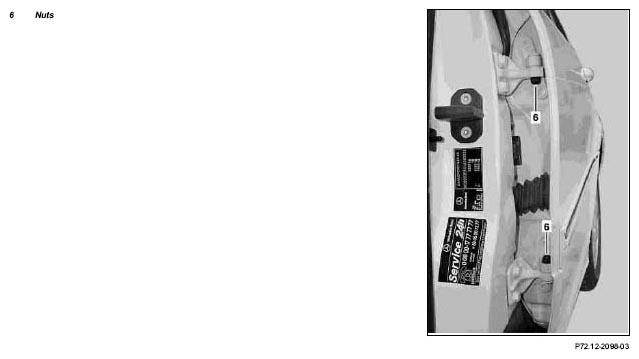

Fig 2: Identifying Rear Door Remove/Install Components (2 Of 2)

	Remove/Install
1	Open window
2	Remove paneling on B-pillar	Remove paneling on B-pillar (1) at bottom.	AR68.30-P-4700P
3	Pull off connectors of door separation point	Left rear door separation point (X35/3), right rear door separation point (X35/4)
4	Use mounting wedge to unclip protective tube (2) at B-pillar	Mounting wedge	Figure
5	Release omega clips (5) and pull line (4) out of B-pillar
6	Remove bolts (3)	Move door to first detent.
		Bolt at door catch	*BA72.12-P-1002-01A
7	Remove nuts (6)
8	Take out rear door
	When replacing a door, carry out seam sealing and cavity preservation	When replacing a door ↓
		Check rubber seal for corrosion and clean if necessary
		Treat door frame in area of contact surface of rubber seal with MB preservative	*BR00.45-Z-1003-05A
9	Install in the reverse order
10	Perform function check
	Check
11	Inspect gap dimension at rear door all round	Feeler gauge	Figure
		Align rear door, if necessary.	AR72.12-P-0650P
		Gap dimensions on hoods, doors and lids	*BE60.00-P-1002-01E

TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS

Number	Designation				Model 203.004/006/007/008/016/018/020/035/040/042/043/045/046/052/056/061/064/065/081/084/087	Model 203.204/206/207/208/216/218/220/235/240/242/243/245/246/252/254/256/261/264/265/281/284/287/292
BE60.00-P-1002-01E	Gap dimension	Front door to A-pillar	Dimension "B"	mm	6.5 (+1)	6.5 (+1)
		Front door to fender	Dimension "H"	mm	3.5 (-0.5/+1)	3.5 (-0.5/+1)
		Front door to rear door	Dimension "I"	mm	4 (-0.5/+1)	4 (-0.5/+1)
		Front door to roof	Dimension "C"	mm	6.5 (+1)	6.5 (+1)
		Rear door to C-pillar	Dimension "T"	mm	-	6 (+1)
		Rear door to side section, bottom	Dimension "J"	mm	3.5 (+1)	3.5 (+1)
		Front door to rear fender	Dimension "P"	mm	-	-
		Front door to rear fender	See figure in		AR60.00-P-0700-01P	AR60.00-P-0700-01PA

TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS

Number	Designation				Model 203.076	Model 203.276
BE60.00-P-1002-01E	Gap dimension	Front door to A-pillar	Dimension "B"	mm	6.5 (+1)	6.5 (+1)
		Front door to fender	Dimension "H"	mm	3.5 (-0.5/+1)	3.5 (-0.5/+1)
		Front door to rear door	Dimension "I"	mm	4 (-0.5/+1)	4 (-0.5/+1)
		Front door to roof	Dimension "C"	mm	6.5 (+1)	6.5 (+1)
		Rear door to C-pillar	Dimension "T"	mm	-	6 (+1)
		Rear door to side section, bottom	Dimension "J"	mm	3.5 (+1)	3.5 (+1)
		Front door to rear fender	Dimension "P"	mm	-	-
		Front door to rear fender	See figure in		-	-

REAR DOOR

Number	Designation		Model 203
BA72.12-P-1002-01A	Bolt at door holder	Nm	10

Fig 3: Identifying Feeler Gauge (129 589 03 21 00)

Fig 4: Identifying Mounting Wedge (110 589 03 59 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-05A	Preservation agent	A 000 986 72 70 05
