Air ducts, location/purpose/design - GF83.10-P-2139N

MODEL 215

Design

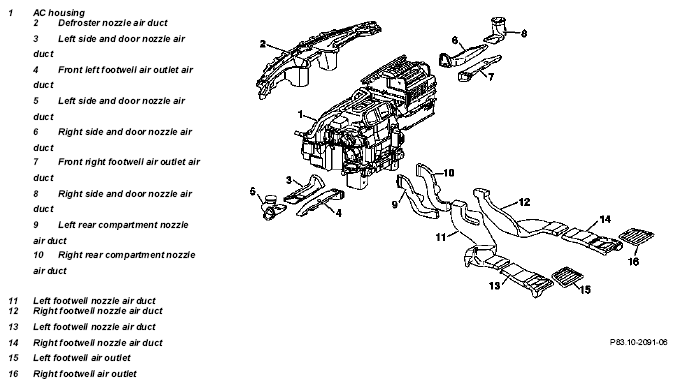

Fig 1: Identifying Air Ducts Locations
G04851352
  Air ducts, location   GF83.10-P-2101-01N
  Air ducts, purpose The air ducts guide the air required for ventilation of the vehicle from the air conditioning housing to the air outlets in the vehicle passenger compartment.
