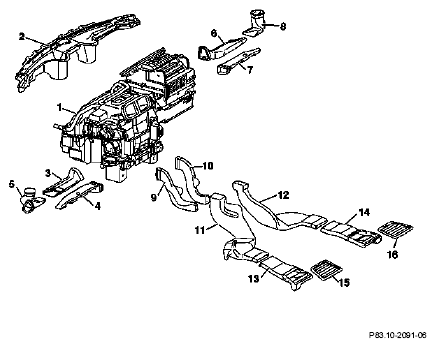

Air ducts, location - GF83.10-P-2101-01N
- The air duct (2) to the windshield/side window defroster nozzles is located at the front in the center below the instrument panel.
- The air ducts (3, 5, 6, 8) for the side and door nozzles are located below the instrument panel.
- The air ducts (4, 7) to the footwell air outlets are located in the front below the instrument panel.
- The air ducts (9, 10) to the rear compartment nozzle are located below the center console and are integrated in the rear area of the center console.
- The air ducts (11, 12) to the rear footwell nozzles are located below the center console. The air ducts (13, 14) run on the vehicle floor to the air outlets (15, 16).
