Retrofitting refrigeration compartment in rear armrest - AN86.61-P-0001N

MODEL 215

The refrigeration compartment has an undervoltage switch and therefore also be operated when the vehicle is stationary without discharging the battery.

When retrofitting, a fuel tank with  through-loading facility must be installed in place of the standard 78-liter fuel tank.

(Not applicable to models with code 282 (skibag in center rear armrest))

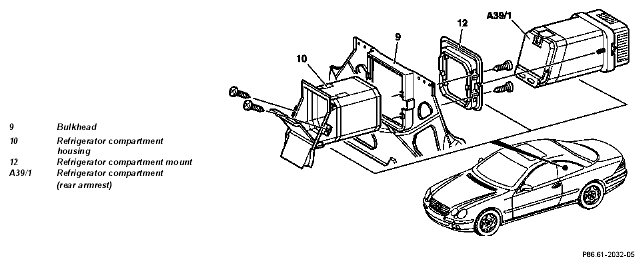

Fig 1: Identifying Refrigeration Compartment Components In Rear Armrest (1 Of 2)

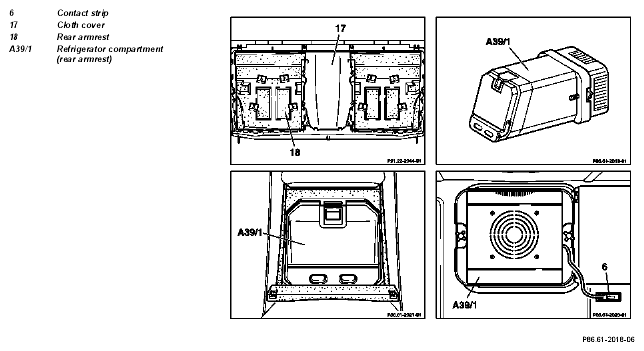

Fig 2: Identifying Refrigeration Compartment Components In Rear Armrest (2 Of 2)

	Risk of explosion  from ignition, risk of poisoning  from inhaling and swallowing fuel as well as risk of injury  from skin and eye contact with fuel.	No fire, sparks, naked flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Notes on refrigeration compartment in rear armrest		AH86.61-P-0001-01A
	Removal
1	Disconnect ground lead from battery
			AR54.10-P-0003I
2	Remove rear seat backrest (18)	Except on models with skibag (through-loading facility) (code 282). Part is not required.
			AR91.12-P-1620MA
3	Remove cloth cover (17) at rear seat backrest (18)	Except on models with skibag (through-loading facility) (code 282).
4	Remove control module holder below right rear seat
5	Remove insulation mat in rear	Except on models with skibag (through-loading facility) (code 282).
6	Remove skibag (or refrigeration compartment mount) (12)	Only on models with skibag (through-loading facility) (code 282)
N	Remove trim panel of trunk	Rear wall trim and floor covering not required, except on models with skibag (through-loading facility) (code 282).
			AR68.30-P-4600M
8	Remove fuel tank	Except on models with skibag (through-loading facility) (code 282).
			AR47.10-P-4100IA
	Installation
9	Install fuel tank	Except on models with skibag (through-loading facility) (code 282).
			AR47.10-P-4100I
10	Route refrigeration compartment wiring harness and connect		AZ86.61-P-0001-01M
11	Retrofit refrigeration compartment housing	Except on models with skibag (through-loading facility) (code 282). Identical to skibag housing	AN91.22-P-0001-03M
12	Install luggage compartment trim	Floor covering is new part, except on models with skibag (through-loading facility) (code 282).
			AR68.30-P-4600M
13	Fit remaining parts to vehicle
14	Remove skibag from rear armrest and place in trunk (part remains with customer)	Only on models with skibag (through-loading facility) (code 282) See owner's manual
15	Insert refrigeration compartment (A39/1) into refrigeration compartment housing (10) and plug connection cable onto contact strip (6)
16	Fill fuel tank	Except on models with skibag (through-loading facility) (code 282).
			AR47.10-P-4001B
	Inspecting
17	Carry out version coding for fuel tank version	Except on models with skibag (through-loading facility) (code 282). See Star Diagnosis
18	Carry out operational check	See Operating Instructions
19	In the event of modification to equipment fitted, subsequently enter code or designation of relevant special equipment on vehicle datacard / FDOK
