Retrofitting and connecting refrigerator wiring harness - AZ86.61-P-0001-01M

Models 215, 220

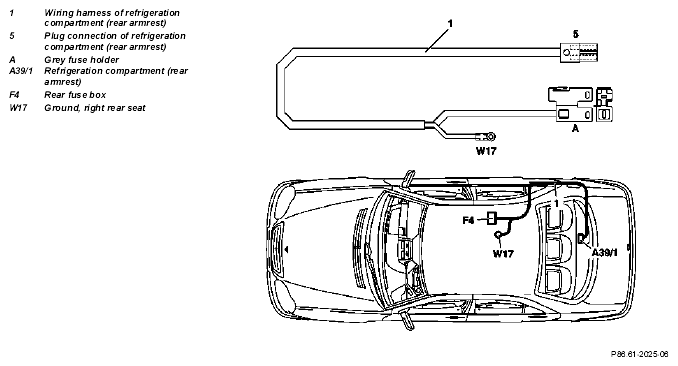

Fig 1: Overview Refrigerator Wiring Harness

1. Route wiring harness (1) of refrigeration compartment (rear armrest) along existing cables to below right rear seat and fix in place with cable strap.
   Fig 2: Identifying Refrigeration Compartment Wiring Harness Routing


2. Route branch of refrigeration compartment plug connection (rear armrest) (5) through cable leadthrough at rear backrest into the luggage compartment and behind the bulkhead (9) as far as the cutout for the refrigeration compartment, and fix in place with felt.
   Fig 3: Identifying Refrigeration Compartment Plug Connection (Rear Armrest) And Bulkhead


3. Route wiring harness (1) of refrigeration compartment (rear armrest) below right rear seat and fix in place.
4. Connect branch of ground cable to ground of right rear seat (W17).
   Fig 4: Identifying Right Rear Seat And Wiring Harness Routing


5. Insert grey fuse holder (A) into connection position F4f76 of rear fuse box (F4).
   Fig 5: Identifying Fuse Holder And Rear Fuse Box


6. Fit a fuse (76) 15 A into grey fuse holder (A) in rear fuse box (F4).
   Fig 6: Identifying Fuse, Fuse Holder And Rear Fuse Box


7. Work out rear wall trim (14) with cutout for through-loading facility to height of recess in bulkhead (see arrow of enlarged detail) for the contact mount (6) in accordance with dimensions stated in enlarged detail.
   Fig 7: Identifying Rear Wall Trim And Dimensions For Contact Mount


8. Run wiring harness (1) through the cutout in the rear wall trim and insert plug connection of refrigeration compartment (5) into contact mount (6).
   Fig 8: Identifying Wiring Harness, Refrigeration Compartment And Mount
