Removing and installation windshield molding - AR67.10-P-1200M

MODEL 215, 220

Illustrated on model 220

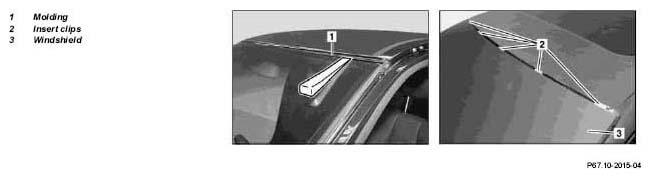

Fig 1: Identifying Windshield Molding Remove/Install Components - Model 215

	Removal
1	Remove paneling on outside of A-pillar	Model 220	AR88.80-P-8500M
		Model 215 Remove paneling on outside of A-pillar on one side only	AR88.80-P-8500K
2	Lift molding (1) at side with plastic wedge and pull out of insert clips (2), (5 each)		Fig 2
	Installation
3	Position molding (1) on insert clips (2), (5 each), align at side and press in
4	Install paneling on outside of A-pillar	Model 220	AR88.80-P-8500M
		Model 215	AR88.80-P-8500K

Fig 2: Identifying Long Wedge (115 589 03 59 00)
