Removal, installation |
|
|
| 1 |

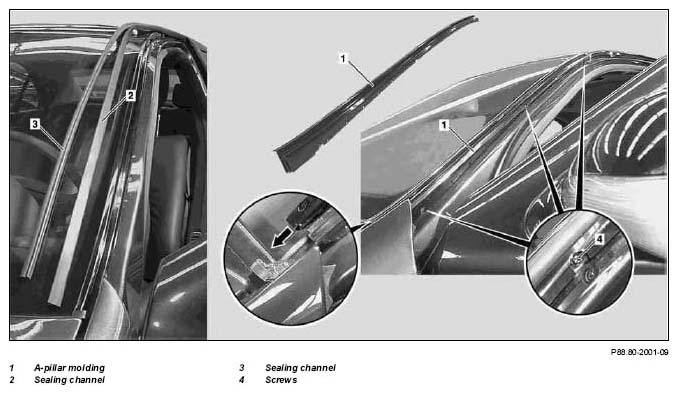

Press sealing channel (2) with mounting lugs out of molding (1) |
Do not damage sealing channel |
|
| |
|
 |
Figure |
| 2 |
Pull sealing channel (3) out of molding (1) |
|
|
| 3 |
Unscrew screws (4) from molding (1) |
|
|
| 4 |
Press molding (1) off of A-pillar |
|
Figure |
| 5 |
Install in opposite order |
|
|
