Remove/install rear window - AR67.20-P-2000M: Notes

MODEL 220

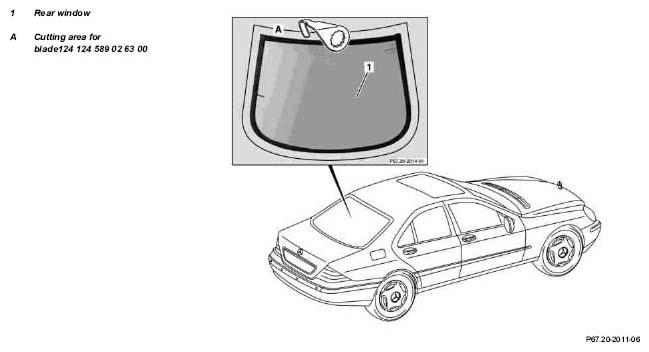

Fig 1: Identifying Rear Window Remove/Install Components - Model 220
G04851129

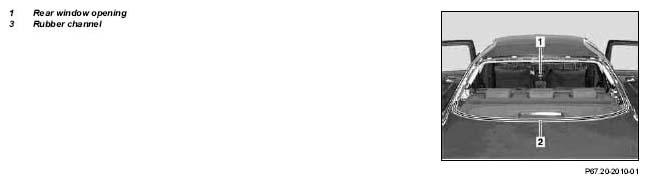

Fig 2: Identifying Rear Window Opening And Rubber Channel
G04851130
REMOVING Remove
DANGER Risk of injury  from slipping when clamping blade in the multicutter and from glass splinters when cutting out glued windows IMPORTANT Clamp blade in or out only when air supply is interrupted.
Wear protective gloves and eye protection.		 AS67.00-Z-0001-01A
1 Prepare glue cartridge   AR67.10-P-1000-07P
    Repair kit *BR00.45-Z-1015-02A
2 Remove paneling on C-pillar   AR68.30-P-4490M
3 Disconnect electric connections for heated rear window from C-pillar and fasten to rear window with adhesive tape
4 Remove molding on rear window   AR67.20-P-2200M
5 Remove rubber spacers   AR67.20-P-2000-01E
6 Cut rear window out of with cutting blade   AR67.20-P-2000-02M
    SPECIAL TOOL Figure
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1003-20A
7 Remove rear window from body with suction cups COMMERCIALLY AVAILABLE TOOLS *WE58.40-Z-1029-11A
INSTALLING Install
8 Replace rubber spacers IMPORTANT Do not remove protective foil AR67.20-P-2000-03M
9 Replace rubber channel (2) at bottom of body flange
10 Prepare window for installation   AR67.10-P-1000-03P
11 Prepare body flange for installation of window   AR67.10-P-1501-01P
12 Line up rear window in the body opening   AR67.20-P-2000-04E
    SPECIAL TOOL Figure
      *BE67.20-P-1001-01A
13 Remove protective foil from rubber spacers
14 Open window in driver's door. NOTES During curing time, this prevents the rear window from being pressed outward by the air pressure when the doors are closed
15 Apply glue NOTES Install window within 10 minutes before adhesive force of glue starts to decrease
IMPORTANT Height of glue bead approx. 13 mm		 AR67.10-P-1000-08K
    COMMERCIALLY AVAILABLE TOOLS Betagun 2K electric cartridge gun *WH58.30-Z-1002-20A
16 Install rear window   AR67.20-P-2000-05M
    COMMERCIALLY AVAILABLE TOOLS *WE58.40-Z-1029-11A
17 Install molding on rear window   AR67.20-P-2200M
18 Connect electric connections for heated rear window on C-pillar
19 Install paneling on C-pillar   AR68.30-P-4490M
20 Clean rear window
INSPECTION AND SETTING DATA OF REAR PANEL WINDOW, REAR WINDOW

Number Designation Model 220
BE67.20-P-1001-01A Distance between top edge of rear window and rear edge of roof Dimension "A" mm 20
Fig. see   AR67.20-P-2000-04E
Fig 3: Identifying Cutting Blade (124 589 02 63 00)
G04851131
Fig 4: Identifying Feeler Gage (129 589 03 21 00)
G04851132
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1002-20A Electric cartridge gun
WH58.30-Z-1003-20A Multicutter
WORKSHOP EQUIPMENT

WE58.40-Z-1029-11A Cup suction tool for window removal and installation
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1015-02A Repair kit A 220 670 00 93
