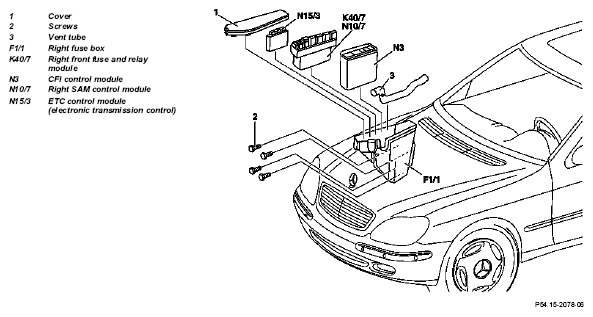

Removing and installing fuse and relay box in engine compartment at right front - AR54.15-P-1258I
MODEL 215, 220
Shown on model 220
| Removal, installation | |||
| 1 | Connect quiescent current retention unit | AR54.10-P-1030-07I | |
| 2 | Disconnect ground lead from battery | AR54.10-P-0003I | |
| 3 | Open engine hood and move to upright position | AR88.40-P-1000M | |
| 4 | Release and remove cover (1) on left fuse box (F1) | ||
| 5 | Remove CFI control module (N3) | AR07.08-P-7008I | |
| 6 | Remove right SAM control module (N10/7) with right front fuse and relay module (K40/7) | AR54.21-P-1261I | |
| 7 | Remove ETC control module (N15/3) | AR27.19-P-1719I | |
| 8 | Remove vent tube (3) | ||
| 9 | Pull wiring harnesses back to right fuse box (F1/1) | ||
| 10 | Unscrew screws (2) and remove fuse box | ||
| 11 | Install in opposite order |
