Removing and installing injection system control module - AR07.08-P-7008I
ENGINE 113, 137 in MODEL 215
applicable for engine control module (ME-SFI)
ENGINE 112, 113 in MODEL 220
applicable for engine control module (ME-SFI)
Shown on model 220
| Removal, installation | |||
| 1 | Connect quiescent current retention unit | AR54.10-P-1030-07I | |
| 2 | Disconnect ground lead from battery | AR54.10-P-0003I | |
| 3 | Open engine hood and move to upright position | AR88.40-P-1000M | |

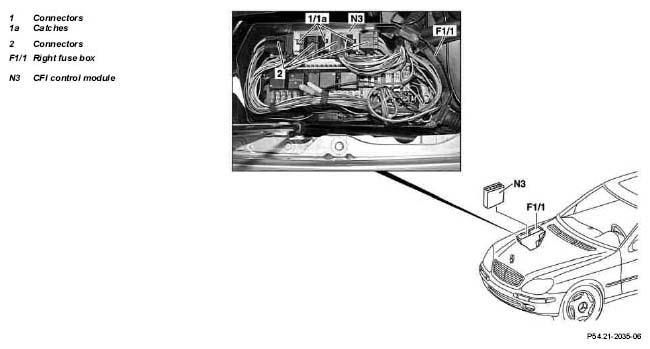

| 4 | Release and remove cover on right fuse box (F1/1) | ||
| 5 | Disconnect connectors (2) on CFI control module (N3) | ||
| 6 | Release catches (1a) on connectors (1) on CFI control module (N3) and remove connectors (1) | ||
| 7 | Lift CFI control module (N3) up and out | ||
| 8 | Install in opposite order |
