Removing and installing claxon - AR54.35-P-1555N

MODEL 215

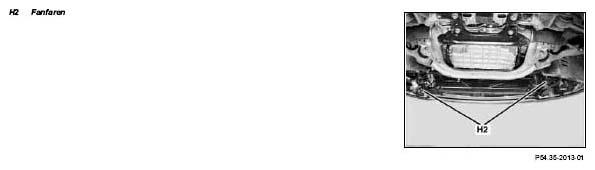

Fig 1: Identifying Fanfare
G04849735
Illustration, item etc. Notes on the work
IMPORTANT Engine compartment lining remove AR61.20-P-1105M
H2 Fanfare horns
