Remove/install mirror glass - AR88.70-P-9020M

MODEL 220, 215

Shown on model 220 up to VIN: 316716

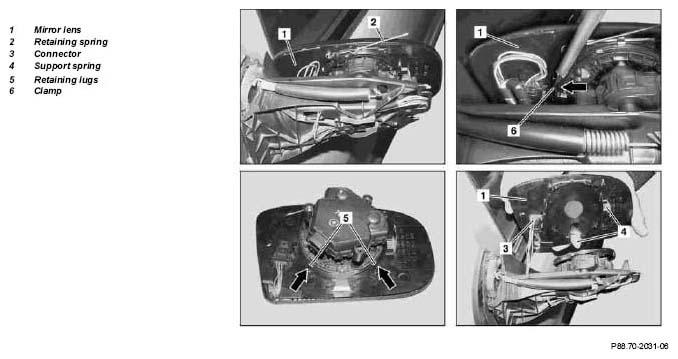

Fig 1: Identifying Mirror Glass Remove/Install Components - Shown On Model 220 Up To VIN 316716

Shown on model 220 as of VIN: 316717

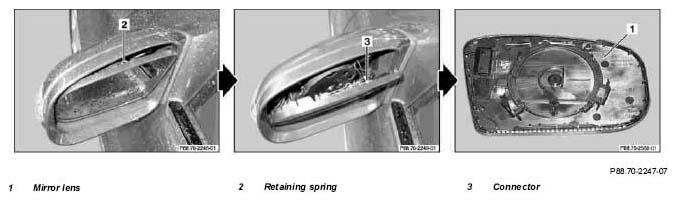

Fig 2: Identifying Mirror Lens, Retaining Spring And Connector - Shown On Model 220 As Of VIN 316717

	Remove/Install
1.1	Remove covering on outside rearview mirror	Model 220 up to VIN: 316716	AR88.70-P-9040M
2	Unhook retaining spring (2)
3.1	Press clip (6) in direction of arrow and remove mirror glass (1) from drive	Model 220 up to VIN: 316716 Do not break off clip (6). Installation:  First hook in mirror glass (1) at bottom with retaining lugs (5) into retaining pockets (arrows) on drive. Observe support springs (4).
3.2	Remove mirror glass (1) from drive	Model 220 as of VIN: 316717
4	Disconnect coupling (3)
5	Install in the reverse order
