Remove/install complete outside mirror - AR88.70-P-9000M

MODEL 220

Shown on model 220 as of VIN: 316717

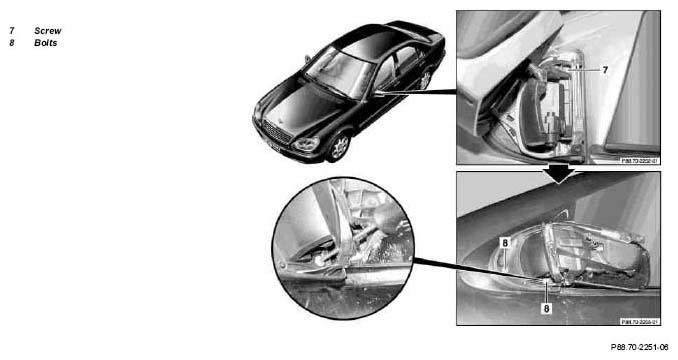

Fig 1: Identifying Outside Mirror Screw And Bolts - Shown On Model 220 As Of VIN 316717

Shown on model 220 up to VIN: 316716

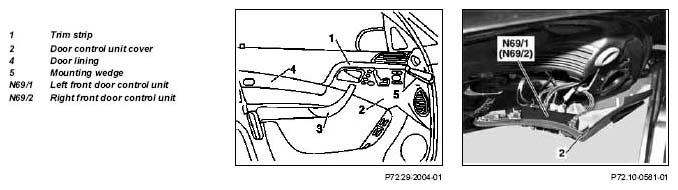

Fig 2: Identifying Door Control Unit, Control Unit Cover And Mounting Wedge - Shown On Model 220 Up To VIN 316716

Shown on model 220 As of VIN: 316717

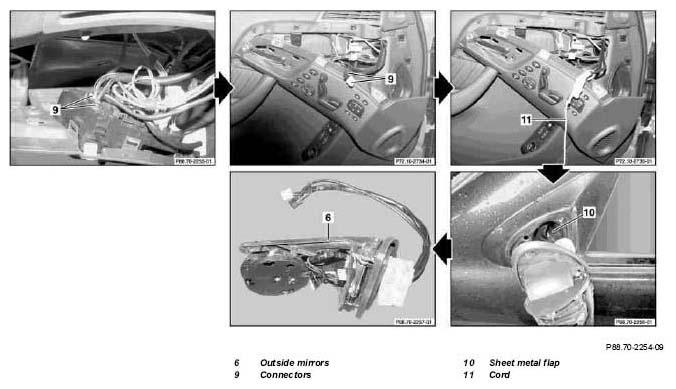

Fig 3: Identifying Outside Mirrors, Connectors, Sheet Metal Flap And Cord - Shown On Model 220 As Of VIN: 316717

	Remove/Install
1	Remove paneling on outside mirror		AR88.70-P-9040M
2	Fold outside mirror (6) toward front and unscrew bolt (7)	Fold down manually
3	Fold outside mirror (6) toward rear and unscrew bolt (8)	Fold down electrically
4	Press door control unit cover (2) off of door lining (4) with mounting wedge (5)	The mount was modified with model refinement as of VIN: 316716
		Model 220 except light armoring, code Z04 except maximum protection, code Z07	AR72.10-P-1000M
		Model 220.174/175/176/178 with light armoring, code Z04	AR72.10-P-1000MC
		Model 220.174/175/176/178 with maximum protection, code Z07	AR72.10-P-1000MB
			Figure
5	Disconnect connector (9) from left front door control unit (N69/1) or right front door control unit (N69/2)	Only outside mirrors with EC dimming (2 connectors) are delivered as replacement parts On vehicles without EC dimming fasten connector (9) not required to wiring harness (tie strap or insulating tape).
6	Bend sheet metal cap (10) toward inside	To achieve more space for lines and connectors (9)
			Figure
7	Fasten cord (11) to connectors (9)	With friction tape
8	Pull outside mirror (6) out of door with electrical lines	Pull out electrical lines for outside mirror without damaging them.
9	Remove cord (11) from connectors
10	Remove outside mirror (6)
11	Install in the reverse order

Fig 4: Identifying Mounting Wedge (110 589 03 59 00)
