Remove/install instrument panel - AR68.10-P-1000N
MODEL 215
| Remove | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003I | |
| 2 | Remove electronic ignition switch control unit | Do not disconnect electrical connectors and shift lock pull cable |
AR80.57-P-1000M |
| Figure | |||
| 3 | Move selector lever to position "D" | ||
| 4 | Remove cover (9) below instrument panel on left | AR68.10-P-1500N | |
| 5 | Disconnect data link connector (X11/4) | ||
| 6 | Remove steering column module (14) with combination switch | AR54.25-P-2802I | |
| 7 | Remove cover (13) below jacket tube | AR68.10-P-1060N | |
| 8 | Remove instrument cluster (12) | AR54.30-P-6015I | |
| 9 | Remove light module (21) | AR54.25-P-3260N | |
| 10 | Remove release handle (22) from parking brake | ||
| 11 | Remove paneling from left and right A-pillars | AR68.30-P-4050M | |

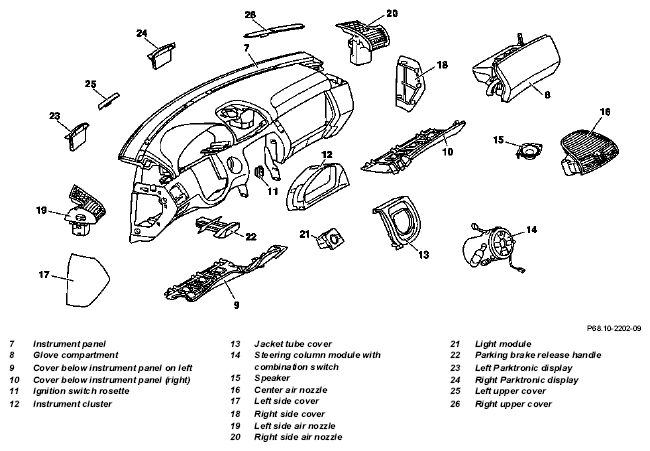

| 12 | Unclip left cover (17) and right cover (18) from instrument panel (7) | Fig 4 | |
| 13 | Remove left (19) and right (20) side air nozzles | AR68.10-P-1100N | |
| 14 | Remove cover (10) below instrument panel on right | AR68.10-P-1520N | |
| 15 | Remove glove compartment (8) | AR68.10-P-1400M | |
| 16 | Remove center console | AR68.20-P-2000N | |
| 17 | Remove center air nozzle (16) | AR68.10-P-1150N | |
| 18 | Remove speaker (15) from center instrument panel (7) | AR82.62-P-7833N | |
| 19.1 | Remove Parktronic displays (23, 24) | with code (220) Parktronic system (PTS) | AR54.65-P-0003B |
| 20 | Unclip covers (25, 26) | ||

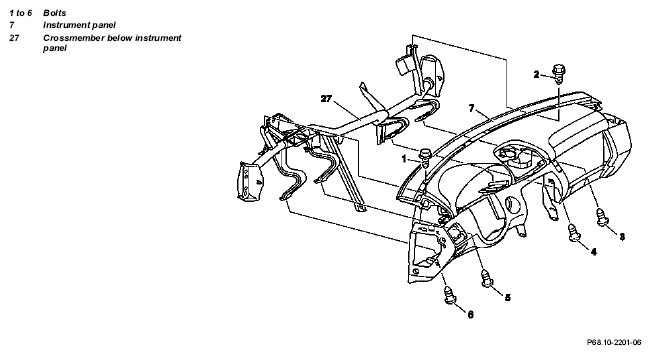

| 21 | Unscrew bolts (1 to 6) from instrument panel | ||
| 22 | Remove instrument panel (7) from passenger door opening | ||
| 23 | Lay instrument panel (7) down on suitable base | ||
| Install | |||
| 24 | Insert sheet metal clip nuts (6 each) in crossmember (27) for mounting instrument panel (7) | ||
| 25 | Install instrument panel (7) in passenger compartment through passenger door opening and position on crossmember (27) | ||
| 26 | Screw in bolts (1 to 6) | ||
| 27 | Install Parktronic displays (23, 24) | AR54.65-P-0003B | |
| 28 | Clip in covers (25, 26) | ||
| 29 | Install electronic ignition switch control unit | AR80.57-P-1000M | |
| Figure | |||
| 30 | Install speaker (15) in center of instrument panel (7) | AR82.62-P-7833N | |
| 31 | Install center air nozzle (16) | AR68.10-P-1150N | |
| 32 | Install left side air nozzle (19) and right side air nozzle (20) | AR68.10-P-1100N | |
| 33 | Install center console | AR68.20-P-2000N | |
| 34 | Install glove compartment (8) | AR68.10-P-1400M | |
| 35 | Install cover (10) below instrument panel on right | AR68.10-P-1520N | |
| 36 | Insert data link connector (X11/4) | ||
| 37 | Install light module (21) | AR54.25-P-3260N | |
| 38 | Install release handle (22) for parking brake | ||
| 39 | Clip in left cover (17) and right cover (18) | ||
| 40 | Install jacket tube cover (13) | AR68.10-P-1060N | |
| 41 | Install steering column module (14) | AR54.25-P-2802I | |
| 42 | Install instrument cluster (12) | AR54.30-P-6015I | |
| 43 | Install cover (9) below instrument panel on left | AR68.10-P-1500N | |
| 44 | Install cover on left and right A-pillars | AR68.30-P-4050M | |
| 45 | Connect ground cable to battery | AR54.10-P-0003I | |
| 46 | Perform function check | ||
| 47 | Read out fault memory |
