Notes on self-locking nuts and bolts |
All models |
AH00.00-N-0001-01A |
| 1 |
Disconnect ground cable of battery |
Ensure that ground cable will not come into renewed contact with the battery terminal as you are working. |
AR54.10-P-0003A |
| 2 |

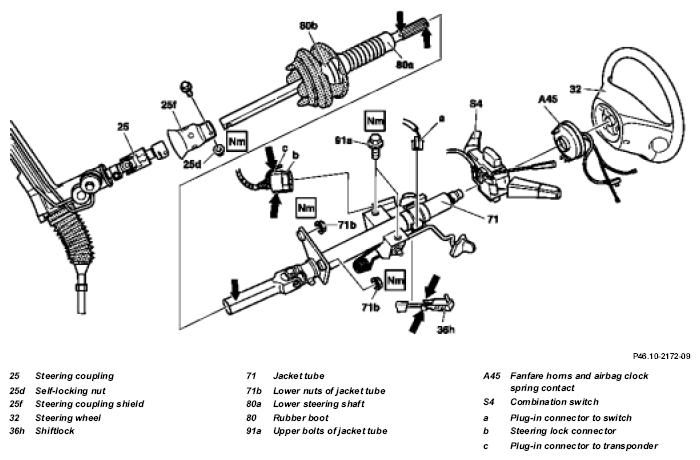

Remove steering wheel (32) |
|
AR46.10-P-0100GH |
| 3 |
Remove fanfare horns and airbag clock spring contact (A45) |
|
AR46.10-P-0200GH |
| 4 |
Remove combination switch (S4) |
|
AR54.25-P-2800GH |
| 5 |
Remove instrument cluster |
|
AR54.30-P-6015GH |
| 6 |
Disconnect connector of contact switch (a) for height adjustment lever |
|
|
| 7 |
Remove shift lock (36h) by compressing retaining clips (arrows) and moving shift lock back out of retaining lugs |
|
|
| 8 |
Separate connector of transponder (c) and remove transponder |
|
|
| 9 |
Disconnect connector of steering lock (b); to do this, unlock plug (arrows) |
Installation:
The plug must lock in position. |
|
| 10 |
Unclip line from combination switch (S4) at the bottom of the jacket tube |
|
|
| 11 |
Remove cover below instrument panel |
|
AR68.10-P-1500GH |
| 12 |
Detach lower nuts of jacket tube (71b) from jacket tube(71) |
 |
*BA46.10-P-1001-03C |
| 13 |
Detach upper bolts of jacket tube (91 a) from jacket tube(71) |
Installation: Attach all bolts and nuts
(it must still be possible to move the jacket tube), then tighten the upper bolts first |
|
|
*BA46.10-P-1002-03C |
| 14 |
Remove jacket tube (71) upwards |
Installation:
Observe markings of jacket tube (71) relative to lower steering shaft (80a) |
|
| 15 |
Unscrew self-locking nut (25d) with bolt from the steering coupling (25) on lower steering shaft (80a) |
|
*BA46.10-P-1001-01D |
| 16 |
Pull lower steering shaft (80a) up and out of steering coupling (25) |
Do not use force as the collapsible tubing is sensitive to side forces. Enlarge clamping groove a little with a screwdriver if necessary. |
|
| 17 |
Remove steering shaft (80a) upwards |
|
|
| 18 |
Check lower steering shaft (80a) and replace if necessary |
If the lower steering shaft has been replaced: ↓ |
|
| Remove steering coupling. |
AR46.10-P-8000GH |
| Installation:
↓ |
|
| Adjust installation position of lower steering shaft to jacket tube. |
AR46.10-P-0400-02GH |
| 19 |
Check rubber boot (80b) and, if necessary, replace |
Installation:
Pay attention to correct seating. |
|
| 20.1 |
Remove lock cylinder |
Only if jacket tube is replaced |
AR46.10-P-0800GH |
| 21 |
Install in the reverse order |
|
|
