Removing and installing cover below instrument panel (left) - AR68.10-P-1500GH

MODELS 163.113 /128 /136 /154 /157 /172 /174 /175

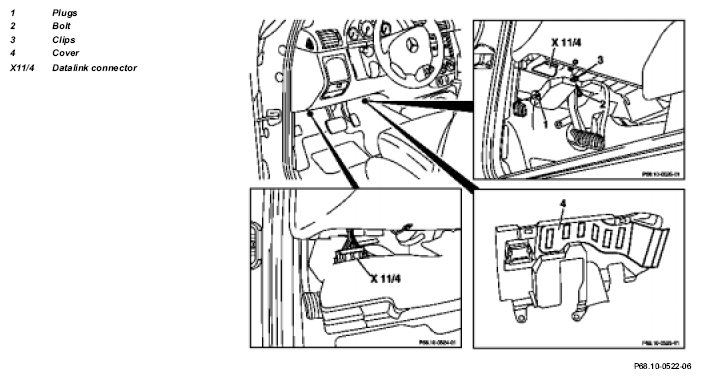

Fig 1: Identifying Cover Below Instrument Panel (Left)

	Remove/install
1	Remove plug (1)	2 each.
2	Unscrew screw (2)	2 each. Installation:  Observe clips (3).
3	Unlock and remove data link connector (X11/4)
4	Take off cover (4)
5	Install in the reverse order
