Remove/install rear center console - AR68.20-P-2020GI

MODEL 163.113 /154 /174 #A as of 289565,163.113 #X as of 754620,163.128 /157 /175

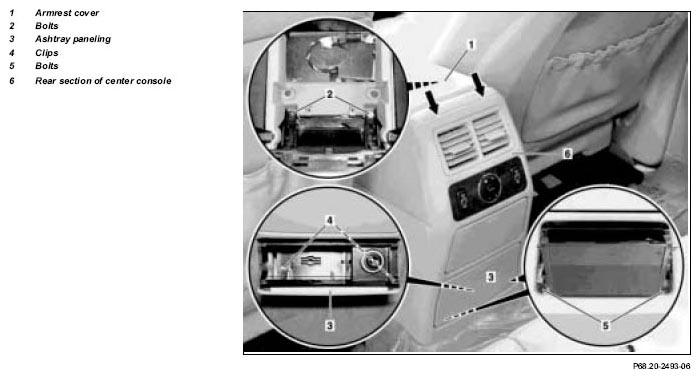

Fig 1: Identifying Rear Center Console Components

	Remove/install
1	Remove armrest lid (1)		AR68.20-P-2370GH
2	Remove stowage box on center console	Press center pin approx. 4 mm down, then remove rivet upward
3	Remove bolts (2) from beverage holder
4	Remove ashtray inner section
5	Remove ashtray paneling (3)	Danger of breaking clips (4). Loosen clips (4) and pull bottom edge of cover toward rear and remove upward
6	Remove bolts (5)
7	Unclip rear center console (6) at top (arrows).	Long wedge	Figure
8	Remove rear center console (6) from center console
9	Disconnect connector from rear control panel control module and ashtray	Disconnect connector for rear ashtray from ashtray housing
10	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)
