Remove/install armrest lid on center console - AR68.20-P-2370GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

Illustrated on model 163 up to 31.08.01

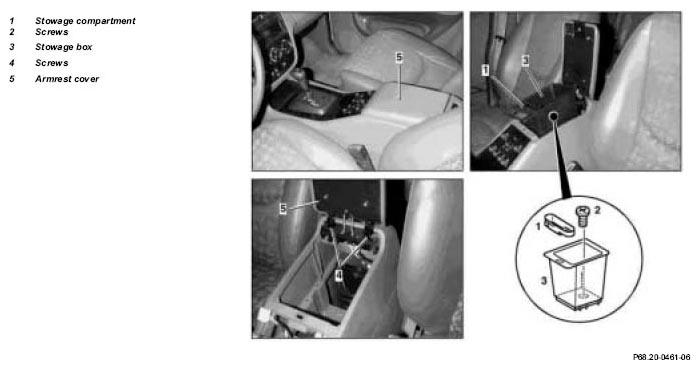

Fig 1: Identifying Armrest Lid On Center Console - Model 163 Up To 31.08.01

Illustrated on model 163 as of 01.09.01

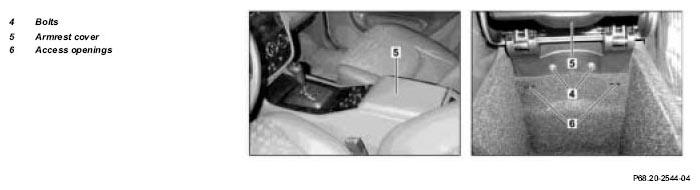

Fig 2: Identifying Armrest Lid On Center Console -Model 163 As Of 01.09.01

	Removing, installing
1.1	Remove storage compartment (1)	Up to 31.08.01: Unclip stowage compartment (1) from stowage box (3)
2.1	Unscrew screws (2) and remove stowage box (3)	up to 31.08.01
3	Unscrew screws (4).
4	Remove armrest lid (5)	As of 01.09.01: Insert long wedge into access openings (6) and loosen retaining lugs.
		Long wedge	Figure
5	Install in the reverse order

Fig 3: Identifying Assembly Wedge (115 589 03 59 00)
