Remove/install bottom section of instrument panel - AR68.10-P-1040GH

MODELS 163.113 /128 /136 /154 /157 /172 /174 /175

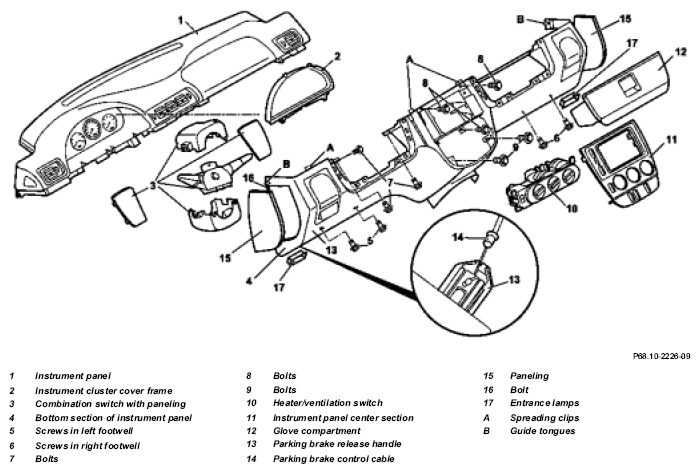

Fig 1: Identifying Instrument Panel Bottom Section Components

	Remove/install
1	Shift transmission selection lever to position "1"	Secure vehicle to prevent it moving away.
2	Disconnect ground cable of battery		AR54.10-P-0003A
3	Remove combination switch with paneling (3)		AR54.25-P-2800GH
4	Remove cover frame of instrument cluster (2)
5	Unscrew the screws (7).	3 screws up to 08/99. 1 screw as of 09/99.
6	Unscrew screws in left footwell (5) on the lower part of the instrument panel (4)
7	Remove center section of instrument panel (11)		AR68.10-P-1030GH
8	Remove switch unit for heater / ventilation (10)	Up to 31.08.01.	AR83.20-P-1835GH
		As of 01.09.01	AR83.40-P-6500GH
9	Unscrew screws (8, 9)
10	Remover glove compartment (12)	Up to 31.08.99.	AR68.10-P-1400GH
		As of 01.09.99.	AR68.10-P-1400GI
11	Unscrew screws in the right footwell (6) on the lower part of the instrument panel (4)
12.1	Unclip entrance lamps (17) and disconnect electrical connectors	As of 09/99.
13.1	Remove paneling (15) and unscrew screws (16)	As of 09/99.
14	Unclip lower part of instrument panel (4) at the four expanding clips (A) on the instrument panel (1)	Installation: Ensure that guide lugs (B) are properly seated in the mounts on the instrument panel.
15	Unhook the Bowden cable of the parking brake (14) at the release handle of the parking brake (13)
16	Remove bottom section of instrument panel (4)	Do not damage instrument panel when removing and installing.
17	Install in the reverse order
18	Read diagnostic trouble code memory and erase
