Remove, install switch unit for heater/ventilation - AR83.20-P-1835GH
MODELS 163.113/136/154/172/174 up to 31.8.01 with CODE (580) air conditioning or Tempmatic for USA
| Remove/install | |||
|---|---|---|---|
| 1 | Remove radio | AR82.60-P-7502EA | |

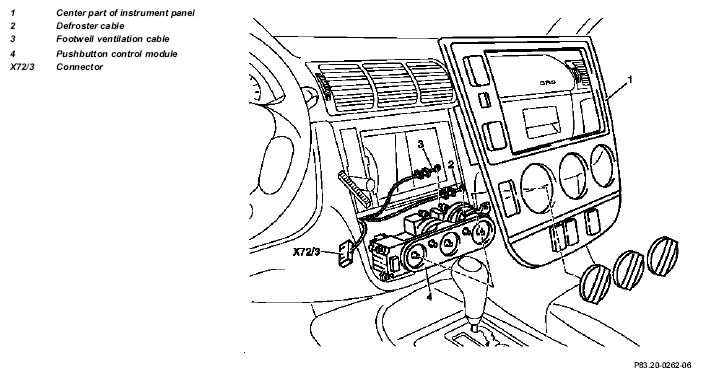

| 2 | Remove center part of instrument panel (1) | AR68.10-P-1030GH | |
| 3 | Unscrew bolts at heater/AC controls (4) and remove controls | ||
| 4 | Detach cable (2, 3) | ||
| 5 | Disconnect connector (X72/3) at heater/AC controls (4) | ||
| 6 | Install in the reverse order |
