Retrofit navigation system Audio 30 APS - AN82.61-P-0001H

MODEL 163 up to 30.6.99 except CODE (819) 6-disk CD changer in trunk

MODEL 163 as of 1.7.99 in combination with CD changer with D2B fiber optic cable system

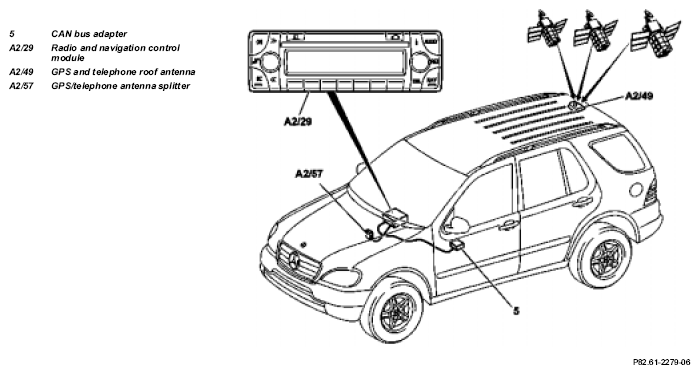

System illustration with GPS and telephone roof antenna

Fig 1: Identifying Retrofit Navigation System Audio 30 APS Components

	Notes on assignment for radio connector	Model 163	AH82.61-P-0001-05A
	Notes on telephone operation with Audio 30 APS navigation system	Model 129, 163, 168, 170, 202, 208, 210	AH82.61-P-0001-06A
	Removal
1	Disconnect ground cable of battery
			AR54.10-P-0003A
2	Remove radio	The Audio 30 APS radio is installed.
			AR82.60-P-7502EA
3	Remove center console
			AR68.20-P-2000GH
4	Remove cover below instrument panel on left	On vehicles up to 06/99
			AR68.10-P-1500GH
5	Remove diagnostic socket	On vehicles up to 06/99
	Install
6	Retrofit global position system antenna (GPS) on roof		AN82.61-P-7474-04AZ
7	Install adapter wiring harness	for vehicles with engine 111 or up to 06/99
		Vehicles with automatic transmission	AN82.61-P-0001-01H
		Vehicles with manual transmission	AN82.61-P-0001-01I
8	Retrofit diagnostic line	On vehicles up to 06/99	AN82.61-P-0001-03A
9	Reassemble vehicle 5 to 1
10	Enable equipment code	See operating instructions
11	Start up auto-pilot system	On vehicles with sound system active sound system when performing diagnosis.	AN82.61-P-1002-07B  *WH58.30-Z-1036-13A
