Remove/install rear ashtray - AR68.20-P-2230GH
MODEL 163.113 /154 /174 #A as of 289565,163.113 #X as of 754620,163.128 /157 /175
| Remove/install | |||
|---|---|---|---|

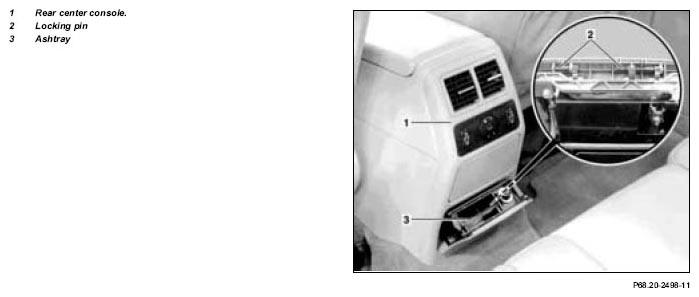

| 1 | Remove rear center console (1) | AR68.20-P-2020GI | |
| 2 | Remove locking pin (2) from ashtray hinge | ||
| 3 | Remove ashtray (3) | ||
| 4 | Install in the reverse order |
