Removing and installing sun visor - AR68.60-P-5480GH

MODEL 163

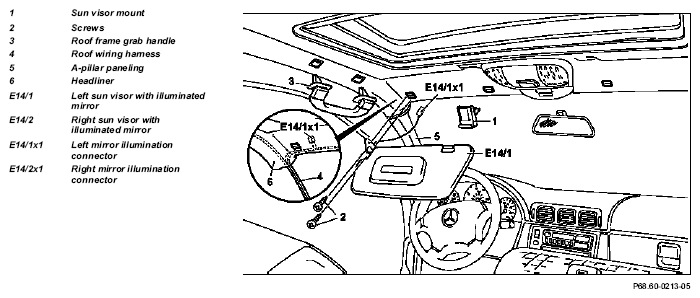

Fig 1: Identifying Sun Visor Components

	Removal, installation
1	Remove paneling on A-pillar (5)		AR68.30-P-4050GH
2	Remove roof frame grab handles (3)	Open cover for grab handles, press both clips together and push grab handles upward. Pull out grab handles.
3	Unclip sun visor mount (1) on roof frame
4	Unscrew screws (2) from sun visor hinge on roof frame
5	Disconnect connector (E14/1x1, E14/2x1) of sun visor from roof wiring harness (4)	Pull headliner down approx. 10 cm at corner next to A-pillar. Do not kink headliner.
6	Remove sun visor (E14/1, E14/2)
7	Install in opposite order
