Removing and installing paneling on A-pillar - AR68.30-P-4050GH

MODELS 163.113 /128 /136 /154 /157 /172 /174 /175

Vehicle illustrated up to 31.8.98

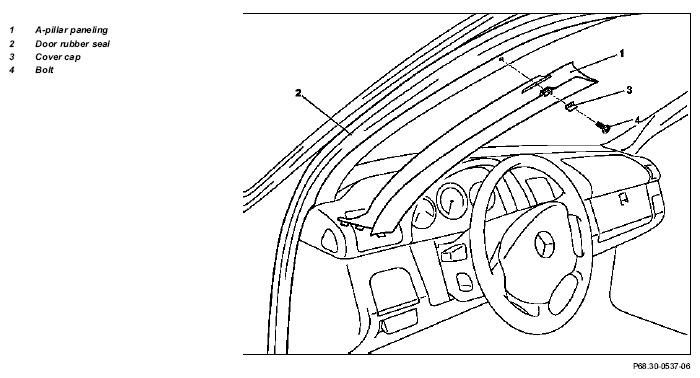

Fig 1: Identifying Paneling On A-Pillar

	Remove/install
1	Remove door rubber seal (2) in area of A-pillar
2.1	Remove cap (3)	Up to 08/98.
3.1	Unscrew screw (4)	Up to 08/98.
4	Remove A-pillar paneling (1)	The paneling is fastened in the instrument panel at the bottom with lugs and will be fastened with a clip at top as of 09/98. Installation:  Replace clip
		Long wedge	Figure
5	Install in the reverse order	On vehicles up to 08/98, on which a new paneling should be installed, the upper area of the fixing opening at the top of the A-pillar must be enlarged so that the clip retainer of the paneling can be installed in the A-pillar.

Fig 2: Identifying Long Wedge (115 589 03 59 00)
