Fiber optical cable (D2B) replace complete (after testing) - AR82.70-P-0005GJ
MODEL 163.113 /154 /174 #A as of 289565, 163.113 #X as of 754620, 163.128 /157 /175 with CODE (810) Sound system
| Remove | |||
|---|---|---|---|

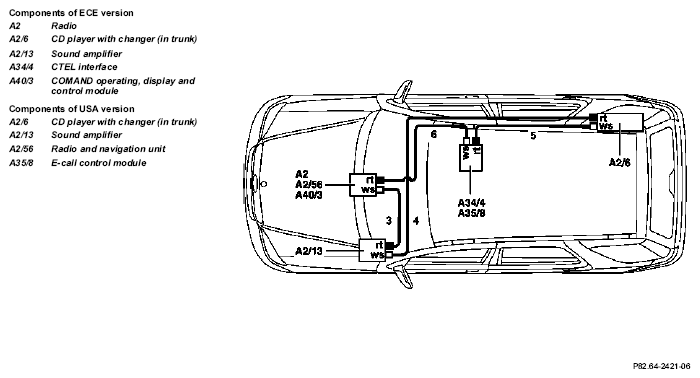

| Notes on fiber optic cable | Models 129, 163, 168, 170, 202, 203, 208, 209, 210,215,220,230,463 | AH82.70-P-0001-02A | |
| 1 | Remove radio | AR82.60-P-7502EA | |
| 2 | Cut through the existing D2B wiring harness as far as possible from the connector on the radio | ||
| 3 | Remove cover under instrument panel on driver's side | AR68.10-P-1500GH | |
| 4 | Unscrew screw on Sound amplifier (A2/13) and disconnect D2 B-plug | ||
| 5 | Cut the existing D2B wiring harness as far as possible away from the plug for the sound amplifier | ||
| Install | |||
| 6 | Plug the plug of the exchange D2B wiring harness into the sound amplifier (A2/13) | ||
| 7 | Fasten sound amplifier (A2/13) with screw | ||

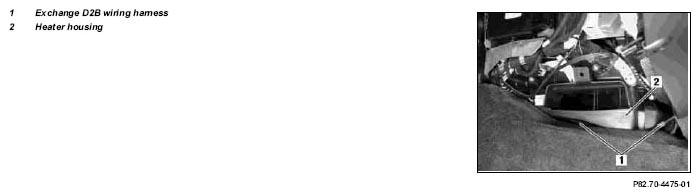

| 8 | Route exchange D2B wiring harness (1) along existing wiring harness to the center of the instrument panel | AR82.95-P-0005-01A | |
| 9 | Route exchange D2B wiring harness (1) next to the heater housing (2) downwards and behind the bracket of the control module for automatic transmission/connector for interior wiring harness | ||
| 10 | Route exchange D2B wiring harness (1) upwards to the radio installation opening | ||
| 11 | Install cover under the instrument panel on the driver's side | AR68.10-P-1500GH | |
| 12 | Plug the plug of the exchange D2B wiring harness (1) into the radio | ||
| 13 | Install radio | AR82.60-P-7502EA |
