Removing and installing fuse and relay box - AR54.15-P-1255GI

MODEL 163.113, 163.154 /172 as of 1.9.99, 163.128 /157 /174 /175

Right footwell

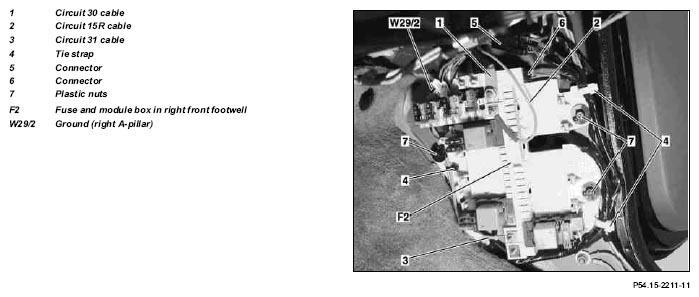

Fig 1: Identifying Fuse And Relay Box Components

	Remove/Install
1	Disconnect ground cable of battery		AR54.10-P-0003A
2	Remove cover below instrument panel	Right-hand drive vehicle.	AR68.10-P-1500GH
		Left hand drive vehicle.	AR68.10-P-1520GI
3	Remove paneling in footwell.	Only right-hand side.	AR68.30-P-4010GH
4	Unscrew circuit 30 cable (1) and circuit 15R cable (2) from fuse and relay module in front right footwell (F2).	Installation:  ensure that lines are routed properly.
5	Remove cable straps (4)	Do not damage wiring harness! Installation:  ensure that lines are routed properly.
6	Unplug connector (5) and remove connector at A-pillar	Slacken retaining lug on back of connector and push connector towards door.
7	Unplug connector (6).
8	Unscrew nut from ground (right A-pillar) (W29/2) and detach circuit 31 cable (3) from ground.
9	Unscrew plastic nuts (7).
10	Remove fuse and relay module in right front footwell (F2) with wiring harness.
11	Install in the reverse order
