Remove/install fanfare horns - AR54.35-P-1555GH

MODEL 163

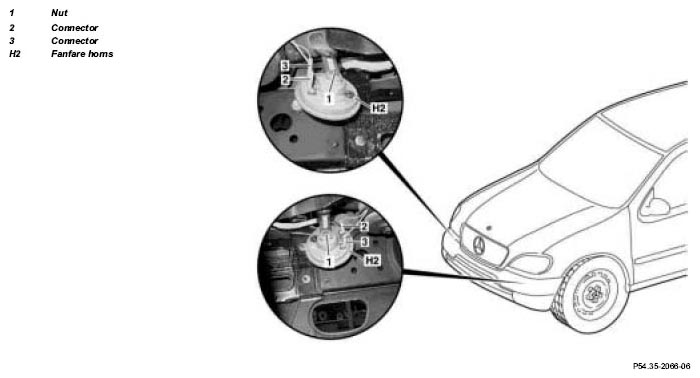

Fig 1: Identifying Fanfare Horn Components

	Remove/Install
	Risk of death  cased by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Jacking up and supporting vehicle		AR00.60-P-1000GH
2	Lock over the front wheels	Makes access to the fanfare horns easier.
3	Unplug connector (2,3)
4	Unscrew nut (1)
5	Remove fanfare horns (H2)	Installation:  Ensure that the fanfare horns no not contact surrounding components. Maintain a minimum distance of at least 10 mm.
6	Install in the reverse order
