Raising, jacking up vehicle - AR00.60-P-1000GH
MODEL 163
| Fig. item, etc. | Work instructions | ||
|---|---|---|---|
| Lethal injuries are possible if vehicle slips off of lifting platform | Align vehicle between the four lifting platform pillars and position the four support plates at the hoist mounting points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Danger of accident through self-acting movement of the vehicle when jacked up Risk of injury through intrusion into engine compartment or driveline where rotating parts pose a serious hazard. | Make sure that the jack stands are securely positioned. Authorized person should occupy driver's seat. Wear closed and close-fitting work clothes. Do not grasp hot or rotating parts. | AS00.00-Z-0008-01A | |

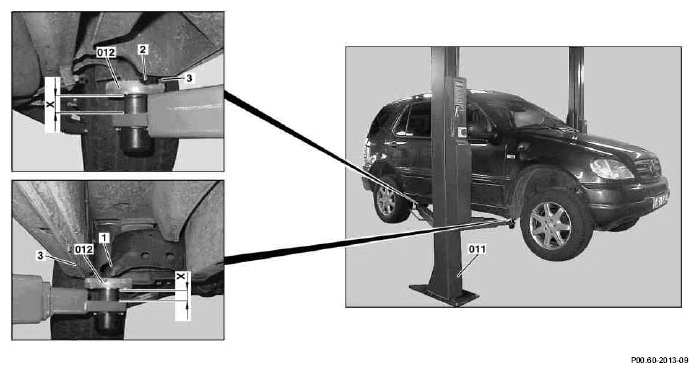

| If the support plates are not properly mounted (012) at the vehicle's designated jacking points (1, 2) damage may occur to the side sill covers (3). | |||
| The vehicle should be secured against tipping or falling off the platform when removing any units. | |||
| Lifting vehicle with inspection pit lift or garage jack | Inspection pit lift. | AR00.60-P-1000-01GH *WE58.40-Z-1002-05A | |
| 1 | Forward jacking points | ||
| 2 | Rear jacking points | ||
| 3 | Side sill covers | ||
| 011 | Lifting platform | *WE58.40-Z-1001-05A | |
| 012 | Support plates | All four support plates must be extended to an equal distance (Dimension X). |
Workshop equipment
| WE58.40-Z-1001-05A | Two-post lifting platform |
| WE58.40-Z-1002-05A | Pit lift |
