Adaptive damping system (ADS II) diagnosis operational check - AD32.32-P-3000B
MODEL 140 as of 1.6.94, 210 with CODE (216b) adaptive damping system (ADS) with level control
| Adaptive damping system (ADS II) diagnosis, previous knowledge | AD32.32-P-2000B | ||
| Function check | |||
| Test step/Scope of test | Operation/Requirement | Specified value | Possible cause/Remedy |

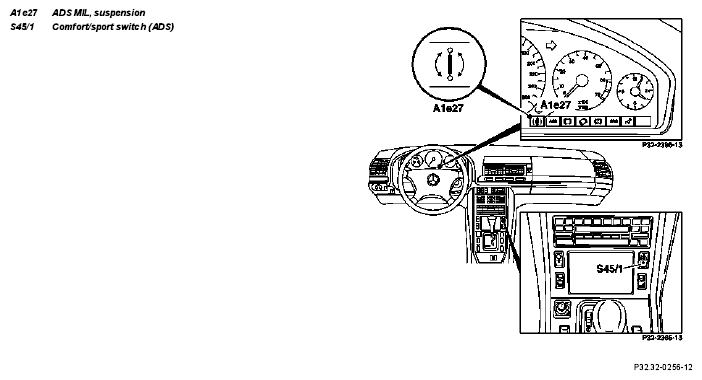

| ADS MIL (A1 e27) suspension | Ignition: ON | A1e27 illuminated | Cables AD32.32-P-6000-03B AD32.32-P-6000-01B |
| Engine: Idling | A1e27 goes out | Steering angle sensor not initialized: Turn steering wheel from right to left stop. Fault stored: Read out fault memory AD32.32-P-4000B AD32.32-P-6000-13A |
|
| Comfort/sport switch (ADS)(S45/1) | Position: Sport | Indicator lamp in switch: ON | Cables AD32.32-P-6000-17A |
| Position: Comfort | Indicator lamp in switch: OFF |
