Replacing rear mount of lower wishbone - AR33.20-P-0527D

MODEL 210.08 /28

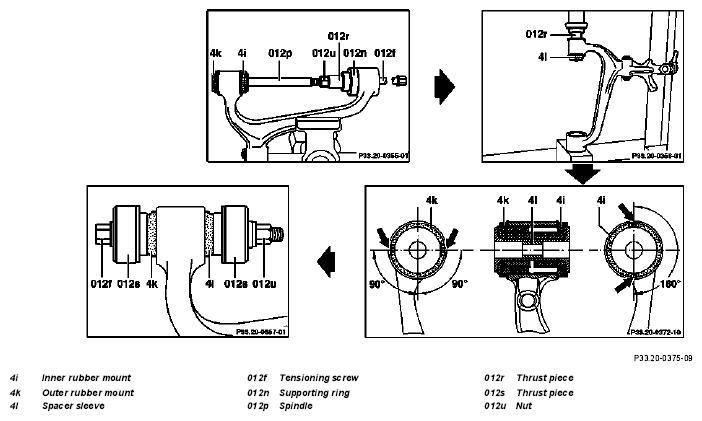

Fig 1: Identifying Rear Mount Of Lower Wishbone Replacing Procedure

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal
1	Remove lower wishbone		AR33.20-P-0510D
2	Clamp lower wishbone in vise	Use aluminum jaws
3	Remove front bearing of lower wishbone	The rear bearing can only be removed when the front bearing is removed	AR33.20-P-0526D
4	Press out outer rubber mount (4k) using tensioning screw (012f), supporting ring (012n), thrust piece (012r), nut (012u) and spindle (012p)		Figure
5	Press out inner rubber mount (4i) using thrust piece (012r) on press	Clean mounting bores
	Installation
6	Install rubber mounts (4i, 4k) with spacer sleeve (4l) in the lower wishbone and install the two thrust pieces (012s) and nut (012u) as far as the stop using the tensioning screw (012f)	Observe installed position of the rubber mount lugs (arrows)
			Fig 3
7	Install lower wishbone		AR33.20-P-0510D

Fig 2: Identifying Removal And Installation Tool (210 589 00 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Removal And Installation Tool (202 589 01 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
