Retrofitting portable CTEL - AN82.70-P-0002AE

MODEL 210.0 as of 1.7.00 up to 30.6.01 except CODE (852) CTEL preinstallation assembly at dome except CODE (855) TELE AID except CODE (819) 6-disk CD changer in trunk except CODE (273) Provision for portable CTEL GSM network in combination with D2B optical wave guide

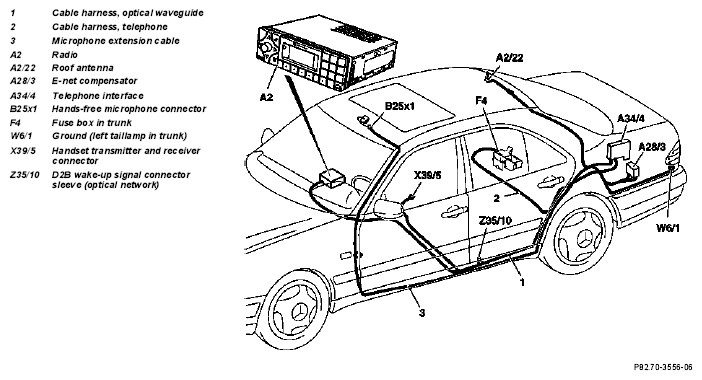

Fig 1: Identifying Portable CTEL Components
G04634212Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVING Removing
IMPORTANT Notes on telephone retrofitting Models 129, 168, 170, 202, 208, 210 as of 1.7.00 up to 30.6.01 AH82.70-P-0001-04B
IMPORTANT Notes on fiber optic cable Models 129, 168, 170, 202, 203, 208, 210, 220 AH82.70-P-0001-02A
1 Connect quiescent current retention unit   *WH58.30-Z-1012-09A
DANGER Risk of explosion  from gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead-acid batteries No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Pour battery electrolyte only into suitable and appropriately marked containers. AS54.10-Z-0001-01A
2 Disconnect ground cable of battery
REFER TO TESTING & REPAIR     AR54.10-P-0003A
NOTES Notes on battery All models. AH54.10-P-0001-01A
3 Remove overhead control panel
4 Remove radio
IMPORTANT   Vehicles with code 750a, 753 or 756a. AR82.60-P-7502EB
REFER TO TESTING & REPAIR     AR82.60-P-7502EA
5 Remove driver's seat
6 Lift up floor lining
REFER TO TESTING & REPAIR     AR68.20-P-2050F
7 Open left cable duct
8 Open rear compartment fuse box
9.1 Remove center console IMPORTANT on installation in armrest.
9.2 Remove center console cover IMPORTANT on installation on center console.
REFER TO TESTING & REPAIR     AR68.20-P-2350F
10 Remove rear seat and rear backrest
REFER TO TESTING & REPAIR     AR91.12-P-1700F
11 Remove paneling in trunk on left
12 Remove paneling from left A-pillar
13 Remove overhead control panel
14 Detach headliner at rear IMPORTANT Applies for installation of roof antenna only.
INSTALLING Install
15 Retrofit fiber optic cable wiring harness   AN82.70-P-0002-01A
16 Cover fiber optic cable NOTESDo not kink or stretch D2B fiber optic cable.
IMPORTANT Install cover caps on fiber optic cable connector and equipment connection.
REFER TO TESTING & REPAIR     AR82.95-P-0005-01A
17 Retrofit telephone cable harness   AN82.70-P-0002-03AE
18 Install hands-free microphone IMPORTANT Only if necessary.
REFER TO TESTING & REPAIR     AR82.70-P-8969C
19 Retrofit roof antenna IMPORTANT Only if necessary. AN82.70-P-8951-06A
    SPECIAL TOOL Figure
    SPECIAL TOOL Figure
IMPORTANT Part orders differ according to fitting location of mobile phone. Please agree fitting location with customer.
20.1 Install mobile phone bracket in armrest
REFER TO TESTING & REPAIR     AR82.70-P-8918AC
20.2 Install bracket for mobile phone (telephone) on center console
REFER TO TESTING & REPAIR     AR82.70-P-8918AB
21 Install telephone interface IMPORTANT Install mobile phone.
REFER TO TESTING & REPAIR     AR82.70-P-7379FB
22 Install E-net compensator
REFER TO TESTING & REPAIR     AR82.70-P-0010B
23 Reassemble vehicle, 14-1
24 Carry out start-up and function test IMPORTANT Code telephone to vehicle using HHT. Reconfigure D2B ring components using Star Diagnosis. *WH58.30-Z-1036-13A
Fig 2: Identifying Assembly Tool I (210 589 04 33 00)
G04634213Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Assembly Tool II (210 589 05 33 00)
G04634214Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Commercially available tools

Number Designation
WH58.30-Z-1012-09A Quiescent current retention unit
WH58.30-Z-1036-13A Handheld tester (HHT) 651 100 01 99
Parts ordering notes

Part no. Designation Quantity
Group 82 (see EPC) Control module bracket (order in accordance with vehicle equipment) 1
Group 82 (see EPC) Hands-free microphone (order in accordance with vehicle equipment) 1
Group 82 (see EPC) Roof antenna 1
Group 82 (see EPC) Cap 1
Group 82 (see EPC) Portable cellular telephone mount on dome (not with code 750, 752, 352) 1
Group 82 (see EPC) Bolt 2
Group 82 (see EPC) Portable cellular telephone mount in center armrest (only with code 352, 750, 752) 1
Group 82 (see EPC) Portable cellular telephone mount on dome 1
Group 82 (see EPC) Cap 2
Group 82 (see EPC) Bolts 2
Group 82 (see EPC) Control module (interface) 1
Group 82 (see EPC) E-net compensator 1
Group 82 (see EPC) Collar nut (control module mount) 2
Group 82 (see EPC) Cable harness, wake up 1
Group 82 (see EPC) Wiring harness, microphone 1
Group 82 (see EPC) Telephone wiring harness on dome (according to customer request) 1
Group 82 (see EPC) Telephone wiring harness in center console (according to customer request) 1
Group 82 (see EPC) HU wiring harness and CTEL 1
