Replacing power seat control module with memory - AR91.29-P-0002K
MODEL 208 with CODE (241) Memory circuit for electrically adjustable left front seat with CODE (242a) Memory circuit for electrically adjustable right front seat with CODE (275a) Memory package (driver's seat, steering column, rearview mirror)
| Removal, installation | |||
| 1 | Remove front seat | AR91.10-P-1000K | |

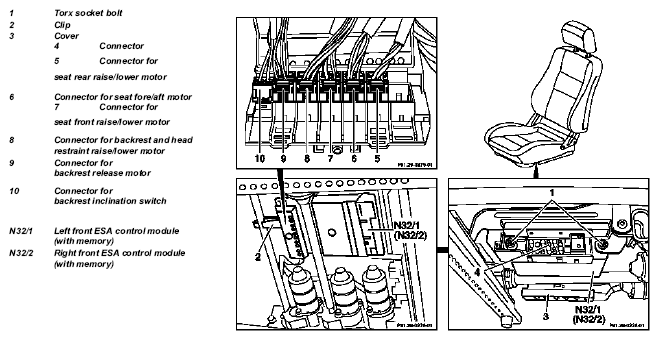

| 2 | Pull off connectors (5 to 10) | ||
| 3 | Unscrew Torx socket bolts (1) | ||
| 4 | Unclip clip (2) from seat subframe and remove left front ESA control module (with memory) (N32/1) or right front ESA control module (with memory) (N32/2) | ||
| 5 | Reinstall in opposite order | ||
| 6 | Check for proper function |
