Removing and installing front seats - AR91.10-P-1000K

MODEL 208

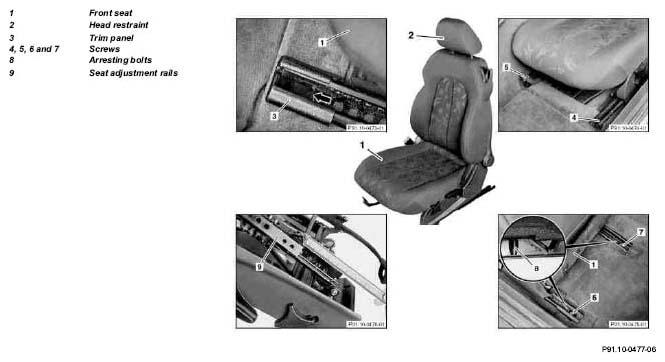

Fig 1: Identifying Front Seats Remove/Install Components

	Removal, installation
1	Remove head restraint (2) and move front seat (1) toward rear
2	Pull off cover (3) on both front seat rails
3	Unscrew screws (4 and 5)		*BA91.10-P-1001-01A
		Use E12 external Torx socket wrench attachment.
			Fig 2
4	Move front seat toward front and fold front seat backrest forward
5	Unscrew screws (6 and 7)		*BA91.10-P-1001-01A
		Use E12 external Torx socket wrench attachment.
			Fig 2
6	Remove front seat (1)	Passenger seat: Separate connector for the seat occupied recognition sensor.
N	Install in opposite order	Before installing position both seat adjustment rails (9) uniformly to one another. A maximum offset of 4 mm is permissible. Insert arresting bolts (8) into holes in seat mounting console.

FRONT SEATS

Number	Designation		Model 208
BA91.10-P-1001-01A	Screw on seat rail	Nm	50

Fig 2: Identifying TORX Bit Set (000 589 01 10 00)
