Removing and installing seat occupied recognition sensor - AR91.60-P-0720K

MODEL 208

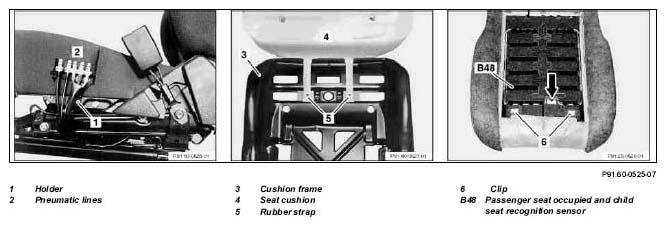

Fig 1: Identifying Seat Occupied Recognition Sensor Remove/Install Components

	Removal, installation
1	Remove ignition key
2	Remove front seat	Disconnect electrical and pneumatic lines from seat	AR91.10-P-1000K
3	Remove multicontour seat control valve	only on vehicles with code 404a and 405a	AR91.25-P-1710E
4	Unclip pneumatic lines (2) from holder (1) and remove holder (1)	only on vehicles with code 404a and 405a Pay attention to installation position of lines
5	Remove cover of front seat cushion	on vehicles with code 873 expose lead for heated seat	AR91.18-P-1800K
		on vehicles with codes 404a and 405a pay attention to installation position of rubber straps (5)
7	Unhook clips (3) on seat cushion	only on vehicles with code 404a and 405a
8	Remove passenger seat occupied and child seat recognition sensor (B48) from seat cushion and guide electrical connector upward out of seat cushion	Pay attention to control module below rubberized fiber matting (arrow) Do not kink passenger seat occupied and child seat recognition sensor (B48)
9	Reinstall in opposite order
10	Perform diagnosis		AD91.60-P-6000A
