Removing and installing front seat backrest release motor - AR91.29-P-1433K

MODEL 208 with CODE (241) Memory circuit for electrically adjustable left front seat with CODE (242a) Memory circuit for electrically adjustable right front seat with CODE (275a) Memory package (driver's seat, steering column, rearview mirror)

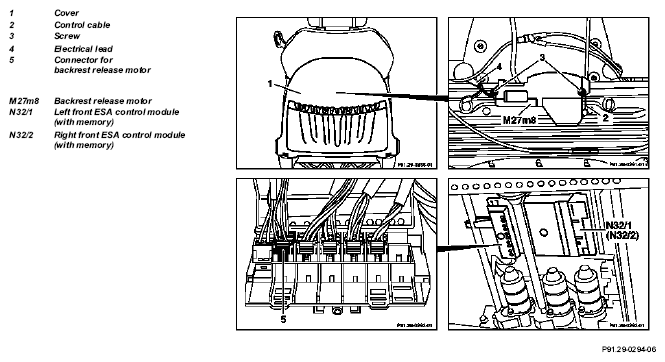

Fig 1: Identifying Front Seat Backrest Release Motor Remove/Install Components

	Removal, installation
1	Remove front seat	Disconnect electrical leads and pneumatic lines below seat	AR91.10-P-1000K
2	Remove cover (1)	Two screws in lower area of cover
3	Unhook backrest cover from backrest frame
4	Unhook control cable (2) from backrest release motor (M27m8)	Actuate backrest release lever
4	Unscrew screws (3)
5	Expose electrical lead (4) to left front ESA control module (with memory) (N32/1) or right front ESA control module (with memory) (N32/2)
6	Disconnect connector (5) from left front ESA control module (with memory) (N32/1) or right front	See wiring diagram for pin assignments	PE91.29-P-2000D
		ESA control module (with memory) (N32/2) and open, remove pins
7	Reinstall in opposite order
8	Check for proper function
