Removing and installing control cables for front seat backrest release - AR91.10-P-1470K

MODEL 208

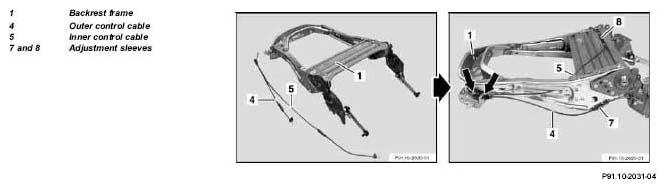

Fig 1: Identifying Control Cables For Front Seat Backrest Release Remove/Install Components (1 Of 2)

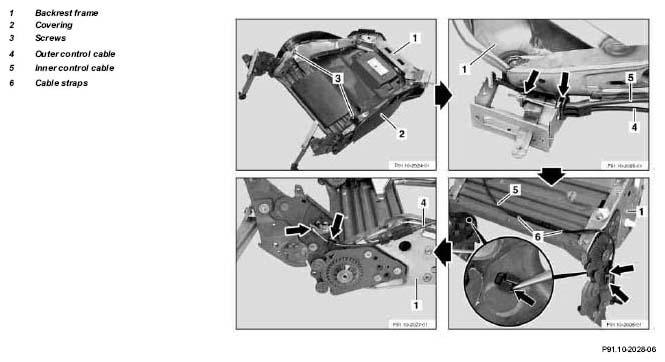

Fig 2: Identifying Control Cables For Front Seat Backrest Release Remove/Install Components (2 Of 2)

	Removal, installation
1	Remove cover on front seat backrest	Remove only up to step 11	AR91.18-P-1820K
2	Unscrew screws (3) and remove covering (2) from backrest frame (1)
3	Unhook control cables (4 and 5) from release lever and backrest frame (1, arrows)
4	Open cable straps (6)
5	Unclip control cable mounts (arrows) on left and right inner backrest fittings and remove
6	Unhook control cables (4 and 5) from release lever (arrows) and remove	When installing ensure that control cables (4 and 5) are routed and fastened properly in the backrest frame (1)
7	Install in opposite order	Adjust control cables (4 and 5) with adjustment sleeves (7 and 8) so that idle travel of 0 - 1 mm is present at the lower release levers when the backrest is locked (driving position)
8	Check for proper function
