Remove/install belt buckle (front seat) - AR91.40-P-1515K

MODEL 208

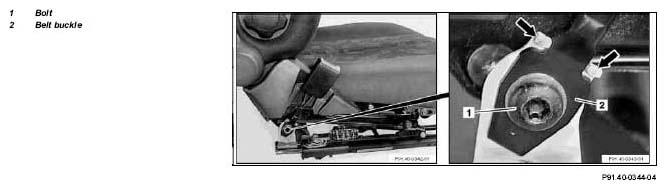

Fig 1: Identifying Front Seat Belt Buckle Remove/Install Components

	Remove/Install
	Instructions for performing repair, body work and welding on vehicles with airbags and ETR units	Models 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904	AH91.00-P-0002-01B
1	Remove front seat		AR91.10-P-1000K
2	Unscrew screws (1)		*BA91.40-P-1003-01A
		Installation:  seat belt buckle (2) must be between locating lugs (arrows) on seat cushion frame
			Fig 2
3	Take off seatbelt buckle (2)
3	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 202, 208.3	Model 208.4	Model 210
BA91.40-P-1003-01A	Screw/nut on front seat belt buckle	NM	35	35	35

Fig 2: Identifying Torque Wrench (001 589 66 21 00)
