Remove/install oil pan - AR01.45-P-7500IW

ENGINES 112.975, 113.948 /966 in MODEL 220

ENGINE 112.917 in MODELS 211.080 /280

ENGINE 112.954 in MODELS 211.082 /282

ENGINE 113.969 in MODELS 211.083 /283

Shown on model 220 with ENGINE 113

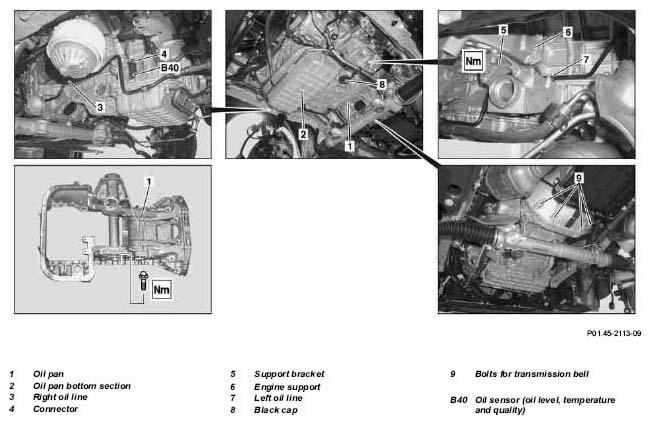

Fig 1: Identifying Oil Pan Remove/Install Components (Shown On Model 220 With Engine 113)

	Remove/install
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
	Risk of death caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates below the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts	All models	AH00.00-N-0001-01A
1	Raise vehicle.
2	Detach lower engine compartment paneling	Model 220	AR61.20-P-1105M
		Model 211	AR61.20-P-1105T
3	Drain and collect engine oil	Installation: Replace sealing ring of the oil drain screw.
		Oil drain plug to oil pan	*BA01.45-P-1003-01B
			*BF18.00-P-1001-01H
4.1	Remove front axle gear	Model 220. 083/084087/183184/187220	AR33.30-P-0525I
5	Remove oil pan bottom section (2)		AR01.45-P-7555IW
6.1	Detach right oil line (3) of the automatic transmission from oil pan (1)	Model 220
7.1	Detach left oil line (7) of the automatic transmission from oil pan (1)	Model 220
8	Detach plug (4) from oil sensor (oil level, temperature and quality) (B40)
9	Detach support clamp (5) from left engine support (6) and from oil pan (1)	Support clamp to left engine support and oil pan upper section	*BA22.10-P-1012-01L
10	Unscrew black cap (8) from oil pan (1)
11	Remove lower bolts (9) for transmission bell on oil pan (1)
12	Dismount oil pan (1)	Installation: Check sealing ring of guide tube of oil dipstick and replace if necessary. Clean the sealing surfaces of the oil pan and crankcase.
		Installation: When installing oil pan the guide tube of the oil dipstick must be counterheld. Installation: Observe different lengths of bolts and different screw diameter. See ↓
		Screw diagram for oil pan	AR01.45-P-7500-06F
		Bolt, oil pan to crankcase	*BA01.45-P-1001-01B
		Sealant	*BR00.45-Z-1013-01A
13	Install in the reverse order
14	Check engine oil level	Engine 113.969 in model 211 4-MATIC Engine 113.948/966 in model 220 4-MATIC	AR18.00-P-3035-01IW
		Engine 112.917/954 in model 211 4-MATIC Engine 112.975 in model 220 4-MATIC	AR18.00-P-3035-01BM
		Measuring rod	*120589072100
15	Run engine and inspect for leaks
16	Perform basic programming	Model 220	AR00.19-P-0200M
		Model 211	AR00.19-P-0200T
17	Read out fault memory and erase	Stored faults which may be caused by removal, test work, removed lines or a simulation, must be processed and erased in the fault memories after completing the work.
	Connect up STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A

OIL PAN

Number	Designation			Engine 112.916/953/975, 113.948/966	Engines 112.910/911/ 912/913/914/ 915/917/920/ 921/922/923/ 940/941/942/ 943/944/945/ 946/947/949/ 951/954/955/ 960/961/970/ 972/973/976	Engines 113.940/941/ 942/943/944/ 945/946/960/ 961/962/963/ 965/967/968/ 969/980/981/ 982/984/986/ 992/995
BA01.45-P-1001-01B	Bolt, oil pan to crankcase	M6	Nm	9	9	9
BA01.45-P-1001-01B	Bolt, oil pan to crankcase	M8	Nm	20	20	20
BA01.45-P-1003-01B	Oil drain screw on oil pan	M14	Nm	30	30	30

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engines 112.975, 113.948/966 in model 220
BA22.10-P-1012-01L	Support clamp at left engine support and at oil pan top section	Nm	22

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 112.917/954 in model 211	Engine 113.969 in model 211
BA22.10-P-1012-01L	Support clamp at left engine support and at oil pan top section	Nm	22	22

ENGINE LUBRICATION

Number	Designation			Engine 112 except 112.916/953/975	Engine 112.975	Engine 113.948/966
BF18.00-P-1001-01H	Engine oil	Filling capacity with oil filter	Liters	8.0	8.0	8.0
		Filling capacity without oil filter	Liters	7.5	7.5	7.5
		Specifications for Operating Fluids	Sheet	BB00.40-P-0229-01A	BB00.40-P-0229-01A	BB00.40-P-0229-01A
			Sheet	BB00.40-P-0229-03A	BB00.40-P-0229-03A	BB00.40-P-0229-03A
			Sheet	BB00.40-P-0229-05A	BB00.40-P-0229-05A	BB00.40-P-0229-05A

ENGINE LUBRICATION

Number	Designation			Engines 113.940/941/942/943/960/ 961/962/969/ 982
BF18.00-P-1001-01H	Engine oil	Filling capacity with oil filter	Liters	8.0
		Filling capacity without oil filter	Liters	-
		Specifications for Operating Fluids	Sheet	BB00.40-P-0229-01A
			Sheet	BB00.40-P-0229-03A
			Sheet	BB00.40-P-0229-05A

Fig 2: Identifying Measuring Rod (120 589 07 21 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Sealant	A 003 989 98 20
