Remove/install rack-and-pinion steering - AR46.20-P-0600PW

MODEL 203.081 /084 /087 /092 /281 /284 /287 /292

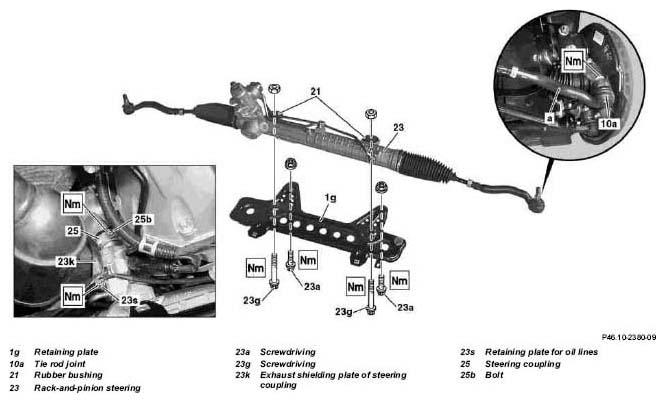

Fig 1: Identifying Rack-And-Pinion Steering Remove/Install Components - Model 203.081 /084 /087 /092 /281 /284 /287 /292
G04737162
MODIFICATION NOTES

28.2.07 Self-locking nut, steering joint to rack-and-pinion steering   *BA46.10-P-1002-01E
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
TORQUE SPECIFICATION Evaluating steering rack when repairing accident vehicles   AH46.20-P-9409-01A
1 Move out or push out adjustable steering column completely IMPORTANT Needed for separating the steering coupling (25).
2.1 Deactivate easy entry/exit function Vehicles with memory package (driver seat, steering column, mirrors) code 275
NOTES Otherwise the driver seat and steering wheel move to a different position, e.g. when the driver door is opened/closed. The upper frame may be damaged when the holding device is installed.
IMPORTANT It is switched off using the buttons on the steering wheel in the "Comfort" menu on the multifunction display, see vehicle owner's manual.

3 Extract fluid out of the power steering pump's fluid reservoir SPECIAL TOOL Hand pump Figure
4 Remove front wheels
REFER TO COMPONENT MODIFICATIONS Remove/install wheels, rotate if necessary   AP40.10-P-4050Z
5 Detach front and rear lower engine compartment paneling   AR61.20-P-1105P
6 Pry off tie rod ball joints (10a) at right and left of steering knuckle   AR46.40-P-0200-02PW
    SPECIAL TOOL Thrust piece Figure
    SPECIAL TOOL Puller Fig 4
    TORQUE SPECIFICATION *BA46.40-P-1001-01E
7 Remove exhaust shielding plate over the right rubber boot on the retaining plate of the rack-and-pinion steering (23)
8 Detach exhaust shielding plate of steering coupling (23k) on control valve of rack-and-pinion steering (23) IMPORTANT Three bolts.
9 Remove lower bolt (25b) from steering coupling (25) IMPORTANT To do so rotate steering coupling (25) into corresponding position.
    TORQUE SPECIFICATION *BA46.10-P-1002-01E
10 Turn steering wheel to central position (front wheels in straight ahead position) and secure with the retaining device NOTES On a disengaged steering coupling (25) the steering wheel should not be turned because the spiral contact coil will be destroyed.
    SPECIAL TOOL Retainer Figure
11 Pull steering coupling (25) carefully out of the control valve of the rack-and-pinion steering (23) (predetermined fracture point on control valve) NOTES Do not use force (hammer blows, strong lever action) because the lower steering shaft is sensitive to lateral dynamic force and the lower steering shaft may be damaged.
IMPORTANTInstallation:  Refer to: ↓

    Turn rack-and-pinion steering to center position and mount steering coupling AR46.20-P-0600-01P
12 Remove retaining plate of oil lines (23s) from rack-and-pinion steering (23) and pull out oil lines IMPORTANT Seal off line connections with plugs.
IMPORTANTInstallation:  replace O-rings.

    TORQUE SPECIFICATION *BA46.20-P-1001-01F
    SPECIAL TOOL Set of stop plugs Figure
13 Remove support bracket (1g) on rack-and-pinion steering (23) IMPORTANT To do so undo bolts (23g).
    TORQUE SPECIFICATION *BA46.20-P-1002-01F
14 Prop up rack-and-pinion steering (23)
15 Remove support bracket (1g) from front axle carrier To do so unscrew bolts (23a).
    IMPORTANT *BA46.20-P-1004-01F
16 Remove rack-and-pinion steering (23)
17 Check rubber mounts (21) of rack-and-pinion steering fixing for damage and replace, if necessary   AR46.20-P-0600-02I
    Lubricant paste *BR00.45-Z-1002-06A
18 Check protective cap on input shaft of rack-and- pinion steering (23) for damage IMPORTANT Replace if necessary. See: ↓
    Remove/install protective cap for input shaft on steering gear AR46.20-P-0004P
19 Install in the reverse order
20 Fill power steering pump Except model 203.2 with rear axle level control system code 480 AR46.30-P-0010P
    Model 203.281/284 with level control on rear axle code 480
Model 203.287/292 with level control on rear axle code 480
AR46.30-P-0010PV
21 Check steering for function and leaks
22.1 Check front axle toe and adjust if necessary IMPORTANT When installing new parts. see: ↓
    Perform a wheel alignment check AR40.20-P-0200P
TORQUE SPECIFICATION STEERING SHAFT

Number Designation Model 203.081/ 084/087/ 092/281/ 284/287/ 292
BA46.10-P-1002-01E Locking bolt and locknut of steering coupling to rack-and-pinion steering Nm 24
TORQUE SPECIFICATION STEERING GEAR

Number Designation Model 203.081/ 084/087/ 092/281/ 284/287/ 292
BA46.20-P-1001-01F Bolt, oil line retaining plate to rack-and-pinion steering   Nm 20
BA46.20-P-1002-01F Bolted connection, rack-and-pinion steering to front axle carrier Stage 1 Nm 50
Stage 2 ∠ ° 60
BA46.20-P-1004-01F Bolted connection, supporting plate to front axle carrier Stage 1 Nm 50
Stage 2 ∠ ° 60
TORQUE SPECIFICATION TIE ROD

Number Designation Model 203.081/084/ 087/092/281/ 284/287/292
BA46.40-P-1001-01E Self-locking nut, tie rod to steering knuckle Stage 1 Nm 70
Stage 2 ∠ ° -
Fig 2: Identifying Hand Pump (210 589 00 71 00)
G04737163
Fig 3: Identifying Thrust Piece (140 589 00 63 00)
G04737164
Fig 4: Identifying Puller (140 589 09 33 00)
G04737165
Fig 5: Identifying Holding Device (129 589 01 21 00)
G04737166
Fig 6: Identifying Set Of Stop Plugs (129 589 00 91 00)
G04737167
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-06A Lubricant paste A 000 989 01 60
