Removing and installing seal for sliding/pop-up roof cover - AR77.20-P-1300P

MODEL 203.0 /2 with CODE (414a) Electric glass sliding/pop-up roof

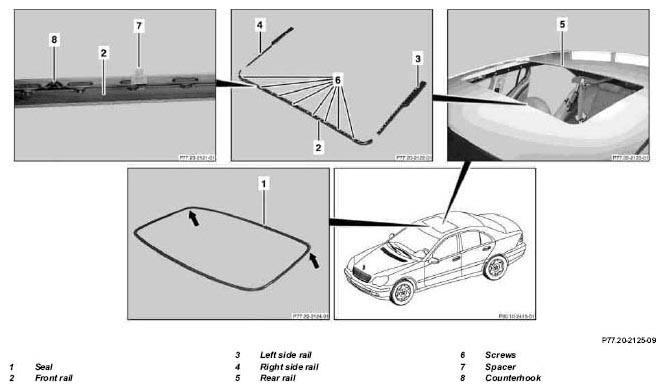

Fig 1: Identifying Remove/Install Components Of Seal For Sliding/Pop-Up Roof Cover

Illustrated on Model 203.0

	Removing
1	Remove wind deflector		AR77.20-P-2500P
2	Loosen screws (6)
3	Pull seal (1) off of rails (2, 3, 4, 5)	Pull seal (1) out of rail (2) carefully because counterhooks (8) are present on the rail.
	Installing
4	Press rail (2) off until spacers (7) are against roof and tighten screws (6)
5	Press seal (1) into rails (2, 3, 4, 5)	Use lubricant. Press in seal (1) at the points marked with arrows first with ribbing upward	*BR00.45-Z-1010-06A
6	Reinstall wind deflector		AR77.20-P-2500P
