Removing and installing pop-up bracket on sliding/pop-up roof - AR77.20-P-1700P

MODEL 203.0 /2 with CODE (414a) Electric glass sliding/pop-up roof

Illustrated on Model 203.0

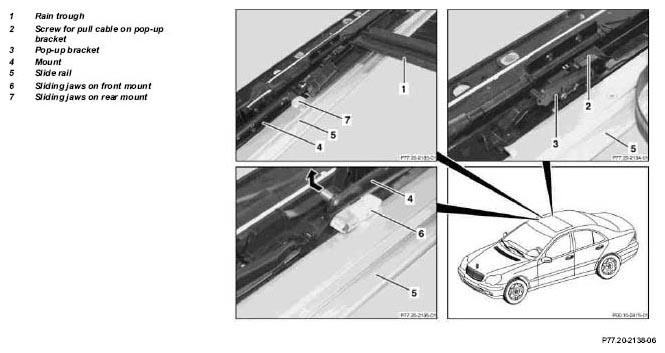

Fig 1: Identifying Pop-Up Bracket On Sliding/Pop-Up Roof Remove/Install Components (1 Of 2)

Illustrated on Model 203.0

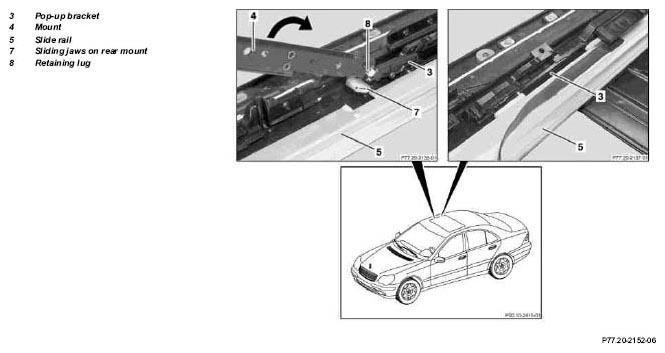

Fig 2: Identifying Pop-Up Bracket On Sliding/Pop-Up Roof Remove/Install Components (2 Of 2)

	Removing, installing
1	Remove sliding/pop-up roof cover		AR77.20-P-1000P
2	Actuate sliding/pop-up roof switch in closing direction until siding/pop-up roof drive switches off
3	Remove rain trough (1)
4	Unscrew screws (2) on both sides
5	Move pop-up bracket (3) toward rear on both sides	Until front sliding jaw (6) on mount (4) can moved out of sliding rail (5).
6	Remove sliding jaw out of front mount (6) at both sides	Observe lead at right of sliding roof.
7	Move pop-up bracket (3) toward front on both sides	Until the lower sliding jaw (7) on mount (4) can be pivoted upward and out through the opening in the sliding rail (5).
8	Pivot sliding jaw on rear mount (7) upward on both sides
9	Remove mount (4) from pop-up bracket (3)	Do not break off retaining lug (8)
10	Push pop-up bracket (3) approx. 30 mm toward front on both sides
11	Remove pop-up bracket (3) out of sliding rail (5)
12	Install in the reverse order
